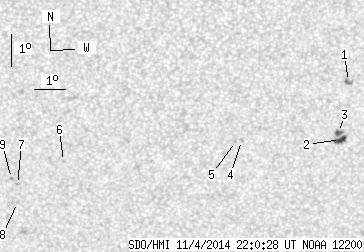

SDO HMI 2014-11-04 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.82 | 21.94 | 3.85 | 12.25 | -16.59 | 101.93 | 17.77 | 219.53 | 0.4604 | 78.0 | -112.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-04 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.41 | 0.00 | 2.46 | -14.96 | 104.18 | 20.01 | 225.84 | 0.4627 | -1038.0 | -813.6 | |
| 4.66 | 11.06 | 2.63 | 6.24 | -16.79 | 104.10 | 19.93 | 222.91 | 0.4814 | 843.7 | 683.7 | |
| 2.16 | -2.00 | 1.22 | -2.00 | -16.57 | 104.01 | 19.84 | 223.11 | 0.4780 | 992.8 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.86 | -16.74 | 100.86 | 16.69 | 218.03 | 0.4482 | 744.0 | 597.9 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -16.77 | 100.66 | 16.50 | 217.68 | 0.4467 | 917.0 | 774.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -17.31 | 95.19 | 11.03 | 206.75 | 0.4075 | -845.0 | -646.2 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -18.02 | 93.78 | 9.61 | 202.99 | 0.4082 | -890.0 | -718.9 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -18.60 | 93.81 | 9.64 | 202.48 | 0.4169 | -592.0 | -486.5 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -17.83 | 93.58 | 9.41 | 202.75 | 0.4041 | -880.0 | -798.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
