SDO HMI 2014-11-04 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.74 | 34.64 | 6.93 | 17.56 | 5.83 | 72.29 | -11.88 | 80.18 | 0.2085 | -638.6 | -369.0 | |
|
previous
or next observation for the same group /

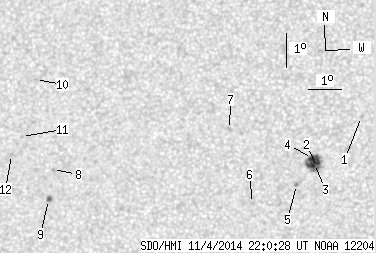

back to the solar disc SDO HMI 2014-11-04 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.65 | 7.22 | 75.57 | -8.60 | 69.07 | 0.1595 | -850.0 | -576.5 | |
| 0.78 | 22.03 | 0.39 | 11.08 | 5.69 | 74.26 | -9.90 | 79.97 | 0.1746 | -1190.2 | -774.9 | |
| 8.03 | -2.00 | 4.04 | -2.00 | 5.81 | 74.17 | -10.00 | 79.39 | 0.1765 | -1218.7 | 999999 | |
| 3.89 | -2.00 | 1.96 | -2.00 | 5.95 | 74.11 | -10.06 | 78.62 | 0.1780 | -1054.5 | 999999 | |
| 0.00 | 1.55 | 0.00 | 0.78 | 5.18 | 73.64 | -10.53 | 83.27 | 0.1841 | -1018.0 | -878.6 | |
| 0.00 | 1.04 | 0.00 | 0.52 | 4.59 | 72.31 | -11.86 | 86.74 | 0.2061 | -819.0 | -630.9 | |
| 0.00 | 1.99 | 0.00 | 1.01 | 6.78 | 71.56 | -12.61 | 77.00 | 0.2235 | -847.0 | -533.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | 5.50 | 66.11 | -18.06 | 84.55 | 0.3114 | 776.0 | 681.9 | |
| 1.04 | 2.85 | 0.54 | 1.49 | 4.61 | 66.01 | -18.16 | 87.45 | 0.3124 | 969.4 | 834.5 | |
| 0.00 | 0.69 | 0.00 | 0.36 | 8.17 | 65.47 | -18.70 | 76.51 | 0.3278 | -695.0 | -568.2 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 6.46 | 65.10 | -19.07 | 81.84 | 0.3294 | 665.0 | 565.8 | |
| 0.00 | 0.86 | 0.00 | 0.45 | 5.92 | 64.80 | -19.37 | 83.56 | 0.3334 | 737.0 | 657.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
