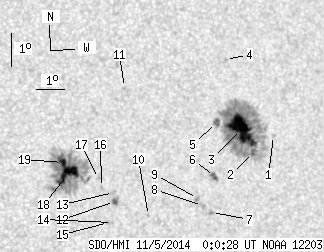

SDO HMI 2014-11-05 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.30 | 336.63 | 40.73 | 198.15 | 12.52 | 114.81 | 31.75 | 287.18 | 0.5390 | -213.9 | -89.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.95 | 12.77 | 118.27 | 35.21 | 286.35 | 0.5882 | -499.0 | -368.4 | |
| 2.16 | 195.01 | 1.31 | 117.74 | 12.29 | 117.45 | 34.39 | 285.80 | 0.5758 | -767.7 | -381.3 | |
| 36.12 | -2.00 | 21.79 | -2.00 | 13.00 | 117.12 | 34.06 | 287.12 | 0.5732 | -1110.4 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.63 | 15.13 | 116.89 | 33.83 | 290.82 | 0.5772 | -615.0 | -532.0 | |
| 2.16 | -2.00 | 1.29 | -2.00 | 13.24 | 116.24 | 33.18 | 287.87 | 0.5619 | -986.2 | 999999 | |
| 2.07 | 4.58 | 1.23 | 2.72 | 11.63 | 115.93 | 32.87 | 285.12 | 0.5528 | -905.2 | -710.8 | |
| 0.00 | 2.07 | 0.00 | 1.22 | 10.56 | 115.69 | 32.62 | 283.27 | 0.5467 | -754.0 | -624.0 | |
| 0.00 | 3.11 | 0.00 | 1.83 | 10.78 | 115.39 | 32.33 | 283.76 | 0.5430 | -799.0 | -614.7 | |
| 0.00 | 2.42 | 0.00 | 1.42 | 10.99 | 115.24 | 32.18 | 284.20 | 0.5413 | -762.0 | -660.0 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 10.55 | 113.45 | 30.38 | 283.94 | 0.5144 | 553.0 | 437.7 | |
| 0.00 | 1.12 | 0.00 | 0.65 | 14.42 | 113.11 | 30.04 | 291.39 | 0.5229 | -587.0 | -474.2 | |
| 1.30 | 3.97 | 0.74 | 2.27 | 11.01 | 112.31 | 29.25 | 285.25 | 0.4991 | 832.5 | 640.8 | |
| 0.00 | 2.16 | 0.00 | 1.23 | 11.28 | 112.31 | 29.24 | 285.78 | 0.4999 | 570.0 | 379.3 | |
| 0.00 | 0.95 | 0.00 | 0.54 | 10.38 | 112.18 | 29.11 | 284.06 | 0.4953 | 627.0 | 496.8 | |
| 0.00 | 1.56 | 0.00 | 0.88 | 10.39 | 112.04 | 28.97 | 284.12 | 0.4933 | 800.0 | 583.4 | |
| 0.00 | 1.38 | 0.00 | 0.79 | 11.44 | 111.91 | 28.85 | 286.27 | 0.4946 | 692.0 | 621.9 | |
| 0.00 | 1.04 | 0.00 | 0.59 | 11.72 | 111.84 | 28.77 | 286.84 | 0.4945 | 359.0 | 365.2 | |
| 20.39 | 113.71 | 11.50 | 64.14 | 11.87 | 110.78 | 27.72 | 287.64 | 0.4797 | 1136.4 | 467.1 | |
| 5.10 | -18.00 | 2.87 | -18.00 | 12.24 | 110.65 | 27.59 | 288.45 | 0.4791 | 1058.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
