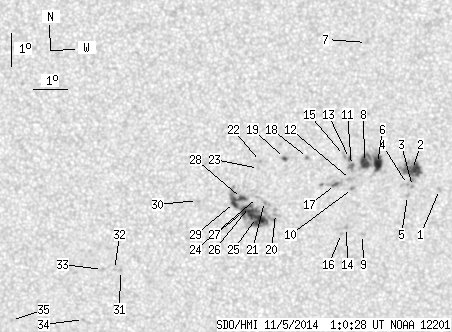

SDO HMI 2014-11-05 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.31 | 186.83 | 33.86 | 94.00 | -4.90 | 86.80 | 4.29 | 205.54 | 0.1771 | 140.9 | 127.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 0.96 | -4.86 | 90.64 | 8.13 | 222.60 | 0.2091 | 842.0 | 631.0 | |
| 13.57 | 27.57 | 6.85 | 13.91 | -4.25 | 89.82 | 7.31 | 221.62 | 0.1919 | 1111.8 | 783.4 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -4.76 | 89.83 | 7.31 | 219.92 | 0.1986 | 987.0 | 828.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -4.70 | 89.67 | 7.16 | 219.53 | 0.1961 | 1078.0 | 899.6 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -5.03 | 89.68 | 7.17 | 218.49 | 0.2006 | 742.0 | 598.0 | |
| 8.55 | 33.53 | 4.31 | 16.87 | -4.06 | 88.77 | 6.26 | 217.90 | 0.1778 | 1130.2 | 800.3 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -0.44 | 88.43 | 5.92 | 233.28 | 0.1292 | 984.0 | 743.1 | |
| 7.78 | -6.00 | 3.91 | -6.00 | -4.02 | 88.38 | 5.87 | 216.24 | 0.1733 | 1176.3 | 999999 | |
| 0.00 | 1.81 | 0.00 | 0.92 | -6.19 | 88.34 | 5.82 | 209.76 | 0.2042 | 833.0 | 625.3 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -4.80 | 88.03 | 5.51 | 212.10 | 0.1810 | 1020.0 | 817.1 | |
| 1.12 | 3.54 | 0.56 | 1.78 | -4.11 | 87.99 | 5.48 | 214.09 | 0.1707 | 1112.3 | 829.1 | |
| 0.00 | 3.20 | 0.00 | 1.61 | -4.53 | 87.96 | 5.45 | 212.62 | 0.1765 | 1004.0 | 764.0 | |
| 0.69 | 2.42 | 0.35 | 1.22 | -3.90 | 87.93 | 5.42 | 214.50 | 0.1671 | 972.9 | 693.4 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -5.98 | 87.85 | 5.34 | 208.18 | 0.1970 | 883.0 | 769.6 | |
| 0.00 | 1.81 | 0.00 | 0.91 | -3.81 | 87.78 | 5.27 | 214.06 | 0.1643 | 863.0 | 660.7 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -6.16 | 87.71 | 5.19 | 207.09 | 0.1985 | 728.0 | 576.5 | |
| 1.04 | 8.90 | 0.52 | 4.48 | -4.68 | 87.52 | 5.00 | 210.00 | 0.1746 | 865.2 | 228.1 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -3.86 | 86.67 | 4.16 | 207.95 | 0.1552 | 1057.0 | 886.3 | |
| 1.12 | 2.16 | 0.56 | 1.08 | -3.89 | 85.99 | 3.48 | 203.82 | 0.1505 | 1073.0 | 849.4 | |
| 0.00 | 4.58 | 0.00 | 2.30 | -5.54 | 85.73 | 3.21 | 198.62 | 0.1755 | -608.0 | -460.1 | |
| 0.00 | 2.16 | 0.00 | 1.09 | -5.18 | 85.40 | 2.88 | 197.45 | 0.1678 | -765.0 | -596.8 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -3.97 | 85.27 | 2.76 | 199.12 | 0.1473 | 836.0 | 656.3 | |
| 0.00 | 1.12 | 0.00 | 0.56 | -4.18 | 85.21 | 2.70 | 198.29 | 0.1504 | 747.0 | 479.4 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -5.06 | 85.19 | 2.67 | 196.46 | 0.1647 | -503.0 | -346.8 | |
| 20.22 | 70.86 | 10.17 | 35.61 | -5.66 | 85.16 | 2.65 | 195.32 | 0.1746 | -1151.9 | -657.6 | |
| 1.64 | -25.00 | 0.82 | -25.00 | -5.33 | 84.95 | 2.43 | 194.64 | 0.1681 | -1083.5 | 999999 | |
| 4.32 | -25.00 | 2.17 | -25.00 | -5.48 | 84.77 | 2.26 | 193.40 | 0.1699 | -1138.6 | 999999 | |
| 2.59 | -25.00 | 1.30 | -25.00 | -5.08 | 84.71 | 2.20 | 193.60 | 0.1630 | -1119.8 | 999999 | |
| 4.67 | -25.00 | 2.34 | -25.00 | -5.20 | 84.50 | 1.99 | 192.19 | 0.1642 | -1184.5 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -5.14 | 83.39 | 0.88 | 185.52 | 0.1602 | 656.0 | 560.6 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -7.25 | 81.09 | -1.42 | 172.80 | 0.1974 | -791.0 | -661.6 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -7.22 | 80.91 | -1.60 | 171.88 | 0.1973 | -764.0 | -652.1 | |
| 0.00 | 2.16 | 0.00 | 1.09 | -7.22 | 80.55 | -1.96 | 170.09 | 0.1983 | -774.0 | -560.1 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -8.74 | 79.97 | -2.54 | 168.74 | 0.2257 | -793.0 | -649.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -8.78 | 77.80 | -4.71 | 159.81 | 0.2364 | -880.0 | -656.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
