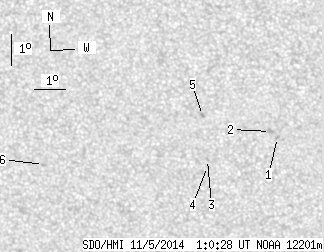

SDO HMI 2014-11-05 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.94 | 0.00 | 5.45 | -21.14 | 78.75 | -3.77 | 171.96 | 0.4324 | 780.2 | 676.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.95 | -21.02 | 80.73 | -1.79 | 176.07 | 0.4256 | 738.0 | 614.4 | |
| 0.00 | 3.20 | 0.00 | 1.75 | -20.82 | 80.51 | -2.01 | 175.54 | 0.4228 | 892.0 | 734.9 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -21.75 | 78.47 | -4.04 | 171.43 | 0.4410 | 761.0 | 677.9 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -21.98 | 78.47 | -4.05 | 171.50 | 0.4446 | 708.0 | 544.4 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -20.31 | 78.36 | -4.16 | 170.62 | 0.4187 | 855.0 | 742.3 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -21.95 | 73.17 | -9.34 | 160.98 | 0.4638 | 727.0 | 641.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
