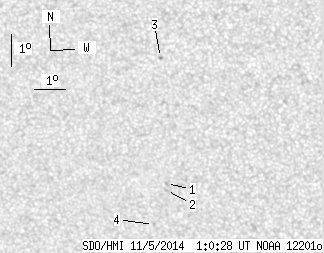

SDO HMI 2014-11-05 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.54 | 0.00 | 3.06 | -16.26 | 65.56 | -16.95 | 140.66 | 0.4450 | 29.2 | 62.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.96 | -16.82 | 65.66 | -16.85 | 141.79 | 0.4505 | 817.0 | 579.8 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -17.04 | 65.64 | -16.87 | 142.07 | 0.4534 | 784.0 | 581.3 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -12.86 | 65.79 | -16.72 | 135.66 | 0.4031 | -732.0 | -614.3 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -18.14 | 65.10 | -17.41 | 142.74 | 0.4716 | -752.0 | -519.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
