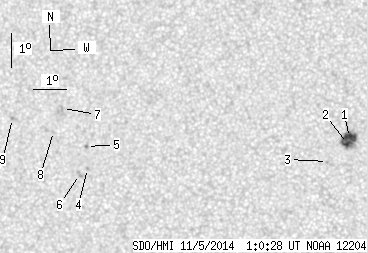

SDO HMI 2014-11-05 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.87 | 30.15 | 6.45 | 15.27 | 5.69 | 71.26 | -11.25 | 79.81 | 0.1975 | -254.7 | 108.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.64 | 19.18 | 4.33 | 9.61 | 5.86 | 74.24 | -8.27 | 76.88 | 0.1476 | -1127.7 | -728.7 | |
| 4.23 | -1.00 | 2.12 | -1.00 | 5.68 | 74.18 | -8.33 | 78.15 | 0.1480 | -1192.1 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | 5.14 | 73.59 | -8.93 | 82.29 | 0.1567 | -834.0 | -713.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | 4.83 | 66.25 | -16.26 | 86.42 | 0.2809 | 920.0 | 780.6 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 5.49 | 66.20 | -16.31 | 84.11 | 0.2823 | 913.0 | 769.4 | |
| 0.00 | 3.02 | 0.00 | 1.56 | 4.65 | 66.00 | -16.51 | 87.10 | 0.2849 | 868.0 | 788.0 | |
| 0.00 | 1.81 | 0.00 | 0.94 | 6.60 | 65.42 | -17.09 | 80.55 | 0.2973 | 776.0 | 638.2 | |
| 0.00 | 1.30 | 0.00 | 0.67 | 5.91 | 65.16 | -17.35 | 82.96 | 0.3003 | 482.0 | 483.7 | |
| 0.00 | 1.38 | 0.00 | 0.72 | 6.27 | 63.86 | -18.65 | 82.22 | 0.3223 | 860.0 | 602.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
