SDO HMI 2014-11-05 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.25 | 29.81 | 7.55 | 24.37 | -14.25 | 32.05 | -49.92 | 111.30 | 0.7977 | -225.3 | -251.4 | |
|
previous
or next observation for the same group /

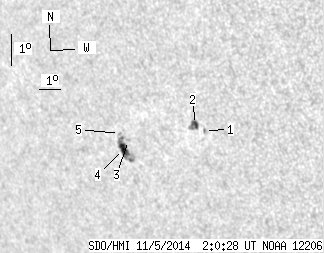

back to the solar disc SDO HMI 2014-11-05 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.99 | -13.72 | 35.10 | -46.86 | 111.75 | 0.7655 | 709.0 | 632.9 | |
| 2.77 | 6.91 | 2.13 | 5.34 | -13.55 | 34.74 | -47.23 | 111.40 | 0.7688 | 673.8 | 481.8 | |
| 0.00 | 1.47 | 0.00 | 1.22 | -14.23 | 31.41 | -50.56 | 111.04 | 0.8043 | -527.0 | -471.9 | |
| 6.48 | 19.18 | 5.42 | 16.03 | -14.53 | 31.07 | -50.90 | 111.29 | 0.8084 | -635.4 | -514.3 | |
| 0.00 | 0.95 | 0.00 | 0.79 | -14.03 | 31.03 | -50.93 | 110.68 | 0.8074 | -550.0 | -468.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
