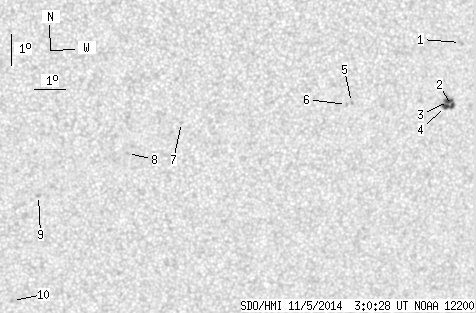

SDO HMI 2014-11-05 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.69 | 23.24 | 4.43 | 13.20 | -17.35 | 100.85 | 19.44 | 220.82 | 0.4886 | 127.8 | -12.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 03:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 1.18 | -14.89 | 104.27 | 22.85 | 229.72 | 0.4940 | -806.0 | -687.1 | |
| 1.90 | 12.96 | 1.10 | 7.46 | -16.87 | 104.20 | 22.79 | 226.57 | 0.5124 | 745.6 | 637.2 | |
| 3.11 | -2.00 | 1.79 | -2.00 | -16.74 | 104.08 | 22.67 | 226.62 | 0.5098 | 969.8 | 999999 | |
| 2.68 | -2.00 | 1.54 | -2.00 | -16.90 | 104.00 | 22.59 | 226.29 | 0.5105 | 908.6 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -16.69 | 100.85 | 19.43 | 222.39 | 0.4747 | 745.0 | 654.3 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -16.75 | 100.69 | 19.27 | 222.07 | 0.4737 | 647.0 | 548.8 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -17.20 | 95.37 | 13.96 | 212.67 | 0.4287 | -750.0 | -683.8 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -18.16 | 93.71 | 12.30 | 208.33 | 0.4283 | -765.0 | -624.2 | |
| 0.00 | 2.07 | 0.00 | 1.14 | -19.48 | 90.95 | 9.54 | 201.47 | 0.4286 | -763.0 | -629.1 | |
| 0.00 | 1.56 | 0.00 | 0.87 | -22.92 | 90.32 | 8.91 | 197.53 | 0.4756 | -803.0 | -643.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
