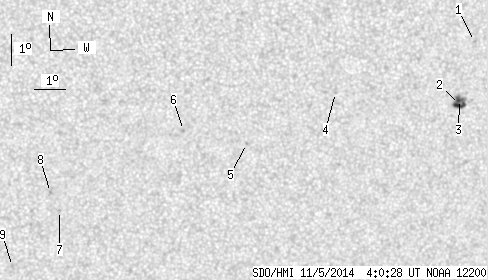

SDO HMI 2014-11-05 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.47 | 21.53 | 4.90 | 12.24 | -17.55 | 100.43 | 19.57 | 220.61 | 0.4925 | 35.3 | -67.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.59 | -14.91 | 104.36 | 23.49 | 230.45 | 0.5016 | -784.0 | -588.8 | |
| 5.53 | 12.79 | 3.20 | 7.39 | -16.89 | 104.10 | 23.23 | 227.09 | 0.5173 | 831.8 | 681.1 | |
| 2.94 | -2.00 | 1.70 | -2.00 | -16.73 | 104.08 | 23.21 | 227.31 | 0.5156 | 1000.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -16.40 | 99.91 | 19.04 | 222.27 | 0.4674 | 621.0 | 527.1 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -17.96 | 97.15 | 16.29 | 215.73 | 0.4587 | -770.0 | -610.9 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -17.50 | 95.08 | 14.21 | 212.75 | 0.4346 | -727.0 | -555.6 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -20.02 | 91.27 | 10.41 | 202.71 | 0.4414 | -649.0 | -461.4 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -19.43 | 90.95 | 10.08 | 202.62 | 0.4309 | -809.0 | -652.1 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -21.83 | 89.87 | 9.01 | 198.49 | 0.4601 | -825.0 | -622.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
