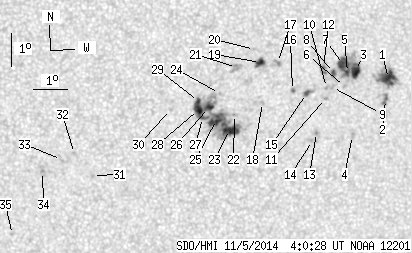

SDO HMI 2014-11-05 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.40 | 226.90 | 42.06 | 114.40 | -4.89 | 86.62 | 5.75 | 212.31 | 0.1887 | 64.6 | 122.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.53 | 27.74 | 6.35 | 14.06 | -4.29 | 90.05 | 9.18 | 228.08 | 0.2148 | 1078.3 | 706.8 | |
| 0.00 | 5.45 | 0.00 | 2.76 | -4.92 | 89.96 | 9.10 | 225.70 | 0.2211 | 1052.0 | 846.7 | |
| 9.08 | 39.15 | 4.59 | 19.77 | -4.04 | 89.05 | 8.18 | 225.67 | 0.1994 | 1123.4 | 642.7 | |
| 0.00 | 2.42 | 0.00 | 1.23 | -6.00 | 88.98 | 8.11 | 219.16 | 0.2233 | 780.0 | 656.2 | |
| 2.68 | -3.00 | 1.35 | -3.00 | -4.10 | 88.81 | 7.94 | 224.61 | 0.1971 | 1191.3 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -4.52 | 88.72 | 7.86 | 222.84 | 0.2013 | 674.0 | 543.2 | |
| 9.59 | -3.00 | 4.84 | -3.00 | -3.86 | 88.69 | 7.82 | 225.04 | 0.1927 | 1200.0 | 999999 | |
| 1.56 | 3.54 | 0.79 | 1.79 | -4.09 | 88.39 | 7.52 | 223.07 | 0.1921 | 1107.2 | 847.6 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -4.54 | 88.36 | 7.49 | 221.40 | 0.1975 | 858.0 | 772.3 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -4.54 | 88.18 | 7.31 | 220.72 | 0.1955 | 845.0 | 743.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -4.87 | 88.15 | 7.29 | 219.53 | 0.1995 | 993.0 | 838.8 | |
| 0.43 | 4.15 | 0.22 | 2.09 | -3.94 | 88.09 | 7.22 | 222.44 | 0.1866 | 1087.0 | 786.8 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -5.89 | 87.89 | 7.03 | 215.47 | 0.2107 | 1025.0 | 852.2 | |
| 0.00 | 3.98 | 0.00 | 2.02 | -6.13 | 87.78 | 6.91 | 214.36 | 0.2129 | 814.0 | 645.4 | |
| 1.64 | 4.67 | 0.83 | 2.35 | -4.72 | 87.58 | 6.72 | 217.74 | 0.1913 | 945.5 | 649.5 | |
| 0.35 | 1.82 | 0.17 | 0.91 | -4.62 | 87.16 | 6.29 | 216.26 | 0.1856 | -919.5 | -662.1 | |
| 0.00 | 3.28 | 0.00 | 1.65 | -3.78 | 86.71 | 5.84 | 217.05 | 0.1693 | 1044.0 | 869.0 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -4.98 | 86.26 | 5.40 | 211.12 | 0.1821 | -895.0 | -531.0 | |
| 4.32 | 6.83 | 2.17 | 3.43 | -3.77 | 86.20 | 5.33 | 214.58 | 0.1641 | 1103.5 | 701.7 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -3.38 | 86.02 | 5.15 | 215.05 | 0.1567 | 791.0 | 604.7 | |
| 0.00 | 6.74 | 0.00 | 3.38 | -3.92 | 85.48 | 4.61 | 210.35 | 0.1595 | 289.0 | 677.4 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -5.33 | 85.43 | 4.56 | 206.13 | 0.1806 | -763.0 | -551.5 | |
| 12.88 | 95.16 | 6.49 | 47.89 | -5.78 | 85.28 | 4.41 | 204.35 | 0.1866 | -1090.6 | -507.9 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -4.70 | 84.98 | 4.11 | 205.38 | 0.1674 | -780.0 | -425.9 | |
| 11.15 | -23.00 | 5.61 | -23.00 | -5.48 | 84.89 | 4.02 | 203.07 | 0.1791 | -1120.9 | 999999 | |
| 5.79 | -23.00 | 2.91 | -23.00 | -5.11 | 84.65 | 3.78 | 202.61 | 0.1717 | -1033.0 | 999999 | |
| 2.42 | -23.00 | 1.22 | -23.00 | -5.41 | 84.47 | 3.60 | 201.01 | 0.1754 | -1098.9 | 999999 | |
| 6.91 | -23.00 | 3.48 | -23.00 | -5.17 | 84.35 | 3.48 | 200.86 | 0.1707 | -1195.8 | 999999 | |
| 2.07 | -23.00 | 1.04 | -23.00 | -4.93 | 84.35 | 3.48 | 201.37 | 0.1668 | -1032.8 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -5.17 | 83.51 | 2.65 | 196.15 | 0.1661 | 798.0 | 540.0 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -7.15 | 81.18 | 0.32 | 181.63 | 0.1939 | -941.0 | -764.7 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -6.49 | 80.65 | -0.22 | 178.79 | 0.1824 | -788.0 | -664.7 | |
| 0.00 | 2.94 | 0.00 | 1.48 | -6.67 | 80.26 | -0.61 | 176.72 | 0.1858 | -692.0 | -431.0 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -7.03 | 79.69 | -1.18 | 173.89 | 0.1928 | -986.0 | -872.6 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -8.95 | 78.78 | -2.09 | 170.84 | 0.2274 | -758.0 | -575.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
