SDO HMI 2014-11-05 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.48 | 28.35 | 10.81 | 22.62 | -14.25 | 32.13 | -48.74 | 111.70 | 0.7860 | -214.5 | -213.5 | |
|
previous
or next observation for the same group /

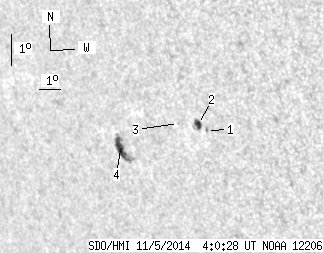

back to the solar disc SDO HMI 2014-11-05 04:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.78 | -13.73 | 35.20 | -45.67 | 112.22 | 0.7529 | 769.0 | 614.9 | |
| 3.37 | 7.17 | 2.54 | 5.41 | -13.56 | 34.89 | -45.98 | 111.88 | 0.7556 | 660.6 | 430.0 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -13.58 | 33.99 | -46.87 | 111.55 | 0.7651 | 76.0 | 103.3 | |
| 10.11 | 19.88 | 8.27 | 16.23 | -14.51 | 31.04 | -49.83 | 111.62 | 0.7980 | -637.3 | -534.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
