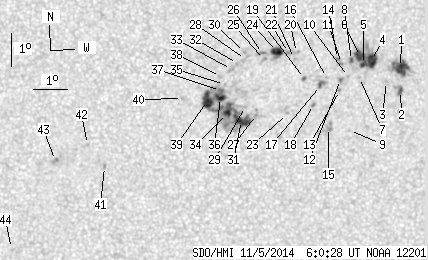

SDO HMI 2014-11-05 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.66 | 248.84 | 38.79 | 125.72 | -4.86 | 86.55 | 6.77 | 216.80 | 0.1971 | 283.2 | 1.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.96 | 22.99 | 6.60 | 11.70 | -4.26 | 90.10 | 10.32 | 231.56 | 0.2292 | 1064.4 | 704.0 | |
| 1.82 | 5.96 | 0.93 | 3.04 | -4.96 | 90.11 | 10.33 | 229.28 | 0.2368 | 1009.7 | 822.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -4.68 | 89.68 | 9.90 | 228.98 | 0.2282 | 912.0 | 630.7 | |
| 10.37 | 42.09 | 5.26 | 21.33 | -4.04 | 89.22 | 9.44 | 229.82 | 0.2152 | 1096.3 | 622.6 | |
| 2.94 | -4.00 | 1.49 | -4.00 | -4.16 | 88.98 | 9.20 | 228.67 | 0.2134 | 1160.4 | 999999 | |
| 8.04 | -4.00 | 4.07 | -4.00 | -3.92 | 88.88 | 9.11 | 229.25 | 0.2095 | 1279.6 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -4.55 | 88.86 | 9.09 | 226.96 | 0.2164 | 776.0 | 557.5 | |
| 1.12 | -4.00 | 0.57 | -4.00 | -4.04 | 88.61 | 8.84 | 227.97 | 0.2073 | 1146.4 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -6.14 | 88.58 | 8.81 | 221.10 | 0.2326 | 792.0 | 512.4 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -4.51 | 88.53 | 8.75 | 226.01 | 0.2119 | 962.0 | 790.8 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -4.12 | 88.31 | 8.54 | 226.66 | 0.2046 | 1063.0 | 766.4 | |
| 0.35 | 2.16 | 0.18 | 1.09 | -4.60 | 88.29 | 8.51 | 224.91 | 0.2100 | 1105.2 | 836.2 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -4.93 | 88.26 | 8.49 | 223.72 | 0.2137 | 973.0 | 838.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -3.97 | 88.19 | 8.42 | 226.80 | 0.2013 | 1006.0 | 820.2 | |
| 0.00 | 6.83 | 0.00 | 3.47 | -6.04 | 87.94 | 8.17 | 219.26 | 0.2244 | 883.0 | 737.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -4.54 | 87.86 | 8.09 | 223.67 | 0.2041 | 741.0 | 465.5 | |
| 0.86 | 5.62 | 0.44 | 2.84 | -4.78 | 87.69 | 7.91 | 222.23 | 0.2051 | 1071.1 | 699.0 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -5.34 | 87.48 | 7.71 | 219.68 | 0.2101 | 1069.0 | 897.0 | |
| 0.52 | 1.64 | 0.26 | 0.83 | -4.56 | 87.20 | 7.43 | 221.15 | 0.1968 | -899.0 | -640.0 | |
| 0.00 | 2.51 | 0.00 | 1.26 | -3.78 | 86.96 | 7.18 | 222.95 | 0.1839 | 735.0 | 712.0 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -3.96 | 86.90 | 7.12 | 222.06 | 0.1855 | 879.0 | 652.7 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -3.77 | 86.72 | 6.94 | 221.99 | 0.1811 | 1065.0 | 824.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -5.61 | 86.70 | 6.93 | 215.93 | 0.2055 | -803.0 | -584.9 | |
| 6.66 | 11.32 | 3.35 | 5.70 | -3.74 | 86.39 | 6.61 | 220.73 | 0.1769 | 1198.5 | 414.9 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -3.98 | 86.00 | 6.22 | 218.17 | 0.1758 | 665.0 | 411.0 | |
| 0.00 | 4.06 | 0.00 | 2.04 | -3.80 | 85.94 | 6.16 | 218.54 | 0.1727 | 1097.0 | 744.3 | |
| 0.00 | 3.54 | 0.00 | 1.79 | -5.63 | 85.77 | 6.00 | 212.04 | 0.1969 | -789.0 | -650.7 | |
| 0.00 | 3.63 | 0.00 | 1.82 | -3.97 | 85.43 | 5.66 | 215.54 | 0.1699 | 406.0 | 362.0 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -5.39 | 85.44 | 5.66 | 211.25 | 0.1903 | -693.0 | -585.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -3.76 | 85.40 | 5.62 | 216.13 | 0.1666 | 1096.0 | 845.7 | |
| 9.94 | 102.59 | 5.02 | 51.72 | -5.81 | 85.32 | 5.55 | 209.61 | 0.1956 | -1093.9 | -632.9 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -4.09 | 85.19 | 5.42 | 213.98 | 0.1692 | 419.0 | 231.8 | |
| 0.00 | 2.85 | 0.00 | 1.43 | -4.27 | 85.01 | 5.24 | 212.52 | 0.1701 | 565.0 | 455.6 | |
| 3.54 | -31.00 | 1.79 | -31.00 | -5.59 | 84.90 | 5.13 | 208.24 | 0.1888 | -1207.4 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -4.72 | 84.80 | 5.03 | 210.14 | 0.1749 | -580.0 | -392.8 | |
| 5.01 | -31.00 | 2.52 | -31.00 | -5.11 | 84.69 | 4.91 | 208.47 | 0.1798 | -1185.3 | 999999 | |
| 1.12 | -31.00 | 0.57 | -31.00 | -4.90 | 84.68 | 4.91 | 209.04 | 0.1766 | -915.7 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -4.48 | 84.68 | 4.91 | 210.23 | 0.1702 | 5.0 | -111.8 | |
| 11.41 | -31.00 | 5.74 | -31.00 | -5.20 | 84.30 | 4.52 | 206.32 | 0.1780 | -1194.0 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -5.13 | 83.55 | 3.78 | 202.58 | 0.1717 | 824.0 | 590.8 | |
| 0.00 | 1.73 | 0.00 | 0.87 | -7.17 | 81.22 | 1.45 | 187.41 | 0.1955 | -927.0 | -767.5 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -6.51 | 80.71 | 0.94 | 185.13 | 0.1832 | -818.0 | -748.2 | |
| 0.00 | 2.68 | 0.00 | 1.35 | -6.99 | 79.75 | -0.02 | 179.91 | 0.1907 | -1051.0 | -905.2 | |
| 0.00 | 0.52 | 0.00 | 0.26 | -9.67 | 78.42 | -1.35 | 174.38 | 0.2377 | -262.0 | -363.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
