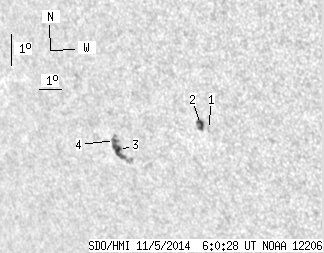

SDO HMI 2014-11-05 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.79 | 26.62 | 9.98 | 20.75 | -14.24 | 32.18 | -47.60 | 112.10 | 0.7744 | -191.0 | -217.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 1.01 | -13.68 | 35.33 | -44.45 | 112.65 | 0.7395 | 649.0 | 561.6 | |
| 3.80 | 6.57 | 2.80 | 4.84 | -13.54 | 35.01 | -44.76 | 112.34 | 0.7424 | 648.6 | 488.0 | |
| 7.35 | 18.67 | 5.87 | 14.90 | -14.56 | 31.06 | -48.72 | 112.06 | 0.7871 | -638.9 | -506.0 | |
| 1.64 | -3.00 | 1.31 | -3.00 | -14.25 | 30.96 | -48.81 | 111.65 | 0.7871 | -619.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
