SDO HMI 2014-11-05 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.61 | 22.12 | 4.45 | 12.68 | -18.54 | 98.40 | 19.17 | 218.57 | 0.5034 | -51.7 | -231.6 | |
|
previous
or next observation for the same group /

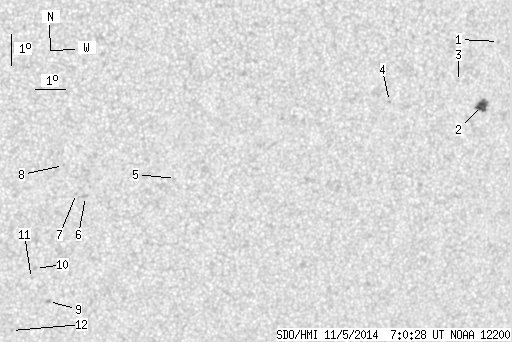

back to the solar disc SDO HMI 2014-11-05 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.55 | -14.86 | 104.40 | 25.17 | 232.45 | 0.5206 | -575.0 | -529.6 | |
| 7.61 | 10.37 | 4.45 | 6.07 | -16.87 | 104.12 | 24.89 | 229.07 | 0.5352 | 920.2 | 661.1 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -16.08 | 103.19 | 23.97 | 229.21 | 0.5176 | 659.0 | 548.0 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -16.65 | 100.94 | 21.72 | 225.60 | 0.4981 | 650.0 | 586.5 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -18.95 | 94.14 | 14.91 | 212.17 | 0.4590 | -303.0 | -282.7 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -19.48 | 91.27 | 12.04 | 206.40 | 0.4441 | -688.0 | -652.2 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -19.38 | 90.97 | 11.74 | 205.94 | 0.4406 | -780.0 | -646.2 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -18.46 | 90.49 | 11.26 | 205.99 | 0.4246 | -860.0 | -695.0 | |
| 0.00 | 1.99 | 0.00 | 1.13 | -22.91 | 90.33 | 11.10 | 201.49 | 0.4863 | -850.0 | -694.8 | |
| 0.00 | 1.47 | 0.00 | 0.82 | -21.81 | 89.82 | 10.59 | 201.49 | 0.4678 | -766.0 | -561.1 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -22.14 | 89.71 | 10.49 | 201.02 | 0.4719 | -675.0 | -629.2 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -23.87 | 89.19 | 9.96 | 198.76 | 0.4938 | -706.0 | -521.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
