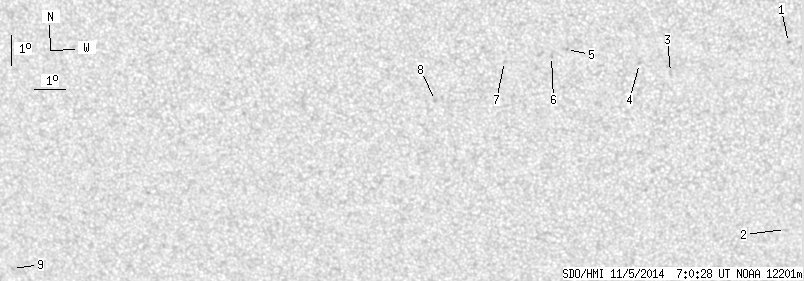

SDO HMI 2014-11-05 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.71 | 0.00 | 7.10 | -22.38 | 76.13 | -3.10 | 175.06 | 0.4596 | 437.1 | 348.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.71 | -20.17 | 84.43 | 5.20 | 191.76 | 0.4190 | 891.0 | 681.5 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -26.44 | 84.57 | 5.34 | 189.37 | 0.5145 | -460.0 | -362.2 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -21.14 | 80.69 | 1.46 | 183.22 | 0.4264 | 642.0 | 529.7 | |
| 0.00 | 1.47 | 0.00 | 0.80 | -20.84 | 79.70 | 0.47 | 181.06 | 0.4211 | 666.0 | 521.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -20.38 | 77.38 | -1.84 | 175.82 | 0.4148 | 805.0 | 689.8 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -20.61 | 76.91 | -2.32 | 174.79 | 0.4191 | 760.0 | 607.6 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -20.78 | 75.41 | -3.82 | 171.52 | 0.4245 | 780.0 | 667.7 | |
| 0.00 | 1.90 | 0.00 | 1.05 | -22.07 | 73.15 | -6.08 | 167.38 | 0.4511 | 524.0 | 421.2 | |
| 0.00 | 1.47 | 0.00 | 0.92 | -28.03 | 58.12 | -21.11 | 148.83 | 0.6164 | -674.0 | -483.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
