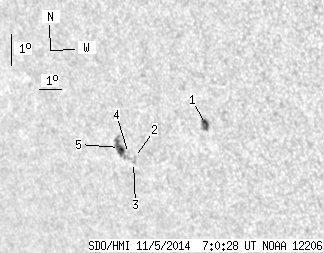

SDO HMI 2014-11-05 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.32 | 26.69 | 8.70 | 20.67 | -14.30 | 32.04 | -47.19 | 112.32 | 0.7704 | -281.7 | -345.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 07:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.23 | 6.65 | 3.09 | 4.85 | -13.55 | 35.07 | -44.15 | 112.59 | 0.7358 | 691.2 | 487.7 | |
| 0.00 | 1.12 | 0.00 | 0.88 | -14.75 | 31.61 | -47.61 | 112.71 | 0.7766 | -671.0 | -519.8 | |
| 0.00 | 1.12 | 0.00 | 0.88 | -14.91 | 31.52 | -47.71 | 112.87 | 0.7781 | -663.0 | -591.2 | |
| 0.00 | 2.16 | 0.00 | 1.70 | -14.64 | 31.37 | -47.85 | 112.48 | 0.7787 | -601.0 | -444.2 | |
| 7.09 | 15.64 | 5.61 | 12.36 | -14.47 | 31.01 | -48.22 | 112.13 | 0.7818 | -623.3 | -483.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
