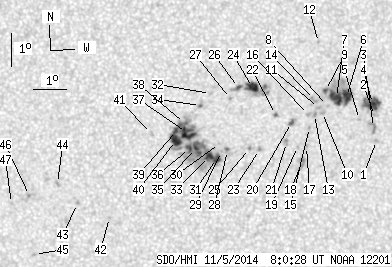

SDO HMI 2014-11-05 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.88 | 278.77 | 42.98 | 141.25 | -4.87 | 86.52 | 7.84 | 220.84 | 0.2085 | 96.5 | 46.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.80 | -5.38 | 90.33 | 11.65 | 231.39 | 0.2584 | 850.0 | 660.0 | |
| 0.00 | 2.16 | 0.00 | 1.10 | -4.62 | 90.26 | 11.58 | 233.58 | 0.2497 | 757.0 | 561.9 | |
| 0.00 | 4.67 | 0.00 | 2.39 | -4.98 | 90.23 | 11.55 | 232.37 | 0.2530 | 965.0 | 838.4 | |
| 11.49 | 19.53 | 5.87 | 9.98 | -4.26 | 90.19 | 11.51 | 234.61 | 0.2452 | 1079.9 | 755.1 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -4.74 | 89.80 | 11.12 | 232.10 | 0.2447 | 1000.0 | 786.2 | |
| 8.30 | 47.53 | 4.22 | 24.17 | -4.04 | 89.40 | 10.72 | 233.41 | 0.2321 | 1060.9 | 599.1 | |
| 10.72 | -6.00 | 5.45 | -6.00 | -4.07 | 89.10 | 10.41 | 232.53 | 0.2282 | 1236.4 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -4.30 | 88.83 | 10.14 | 230.98 | 0.2271 | 765.0 | 660.2 | |
| 1.04 | -6.00 | 0.53 | -6.00 | -3.85 | 88.76 | 10.08 | 232.38 | 0.2215 | 1149.6 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.10 | -4.51 | 88.68 | 10.00 | 229.85 | 0.2274 | 1019.0 | 786.0 | |
| 0.00 | 2.25 | 0.00 | 1.14 | -4.36 | 88.55 | 9.87 | 230.02 | 0.2241 | 984.0 | 766.4 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -2.41 | 88.54 | 9.85 | 237.33 | 0.2041 | 861.0 | 667.2 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -4.57 | 88.44 | 9.75 | 228.96 | 0.2249 | 1071.0 | 936.5 | |
| 0.00 | 2.85 | 0.00 | 1.45 | -4.12 | 88.43 | 9.75 | 230.50 | 0.2199 | 713.0 | 873.9 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -4.96 | 88.29 | 9.61 | 227.24 | 0.2275 | 924.0 | 805.0 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -4.57 | 88.25 | 9.57 | 228.43 | 0.2226 | 941.0 | 786.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -5.53 | 88.21 | 9.53 | 225.19 | 0.2332 | 865.0 | 647.3 | |
| 0.00 | 6.22 | 0.00 | 3.17 | -6.04 | 88.06 | 9.38 | 223.24 | 0.2377 | 756.0 | 760.0 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -5.52 | 87.93 | 9.25 | 224.37 | 0.2299 | 764.0 | 546.4 | |
| 1.21 | 4.23 | 0.61 | 2.15 | -4.80 | 87.74 | 9.06 | 226.08 | 0.2189 | 1056.9 | 788.5 | |
| 0.00 | 3.02 | 0.00 | 1.54 | -5.40 | 87.60 | 8.92 | 223.70 | 0.2244 | 1135.0 | 883.9 | |
| 0.35 | 1.81 | 0.18 | 0.92 | -4.55 | 87.26 | 8.58 | 225.32 | 0.2100 | -956.2 | -719.1 | |
| 0.00 | 2.16 | 0.00 | 1.10 | -5.60 | 86.79 | 8.11 | 220.36 | 0.2177 | -886.0 | -672.0 | |
| 7.95 | 21.43 | 4.01 | 10.82 | -3.74 | 86.56 | 7.88 | 225.80 | 0.1916 | 1241.5 | 694.1 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -5.57 | 86.49 | 7.80 | 219.39 | 0.2139 | -1087.0 | -913.4 | |
| 1.38 | 4.41 | 0.70 | 2.22 | -3.73 | 86.14 | 7.46 | 224.24 | 0.1864 | 915.0 | 686.1 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -4.06 | 85.90 | 7.22 | 222.11 | 0.1878 | 785.0 | 646.1 | |
| 0.00 | 3.02 | 0.00 | 1.53 | -5.62 | 85.82 | 7.14 | 216.76 | 0.2077 | -870.0 | -739.9 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -5.65 | 85.64 | 6.96 | 215.98 | 0.2062 | -888.0 | -732.5 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -5.41 | 85.58 | 6.90 | 216.44 | 0.2023 | -686.0 | -523.6 | |
| 3.72 | 121.77 | 1.88 | 61.49 | -5.86 | 85.49 | 6.81 | 214.81 | 0.2077 | -953.4 | -559.3 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -3.90 | 85.30 | 6.62 | 220.20 | 0.1789 | 529.0 | 358.0 | |
| 5.53 | -31.00 | 2.80 | -31.00 | -5.80 | 85.28 | 6.60 | 214.14 | 0.2048 | -1117.4 | 999999 | |
| 0.43 | 2.51 | 0.22 | 1.26 | -4.26 | 85.00 | 6.32 | 217.65 | 0.1805 | 853.4 | 608.4 | |
| 1.90 | -31.00 | 0.96 | -31.00 | -5.55 | 84.86 | 6.18 | 213.07 | 0.1973 | -1379.0 | 999999 | |
| 3.11 | -31.00 | 1.57 | -31.00 | -5.55 | 84.68 | 6.00 | 212.30 | 0.1956 | -1136.6 | 999999 | |
| 14.61 | -31.00 | 7.36 | -31.00 | -5.07 | 84.59 | 5.90 | 213.26 | 0.1877 | -1110.2 | 999999 | |
| 1.30 | -31.00 | 0.65 | -31.00 | -4.80 | 84.52 | 5.84 | 213.79 | 0.1832 | -560.0 | 999999 | |
| 2.94 | -31.00 | 1.48 | -31.00 | -5.01 | 84.29 | 5.60 | 212.08 | 0.1840 | -1019.8 | 999999 | |
| 8.90 | -31.00 | 4.49 | -31.00 | -5.31 | 84.26 | 5.58 | 211.10 | 0.1882 | -1214.7 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.04 | -5.09 | 83.54 | 4.86 | 208.28 | 0.1788 | 656.0 | 525.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -7.62 | 82.30 | 3.61 | 197.33 | 0.2108 | -866.0 | -656.8 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -7.19 | 81.33 | 2.65 | 193.38 | 0.1993 | -938.0 | -742.7 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -6.58 | 80.73 | 2.05 | 191.01 | 0.1869 | -915.0 | -777.7 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -8.73 | 80.05 | 1.37 | 186.13 | 0.2217 | -834.0 | -714.3 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -6.94 | 79.89 | 1.21 | 186.35 | 0.1909 | -1065.0 | -910.3 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -7.18 | 79.35 | 0.67 | 183.46 | 0.1942 | -880.0 | -679.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
