SDO HMI 2014-11-05 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.21 | 0.00 | 3.45 | -22.30 | 79.54 | 0.85 | 181.21 | 0.4447 | 531.5 | 345.9 | |
|
previous
or next observation for the same group /

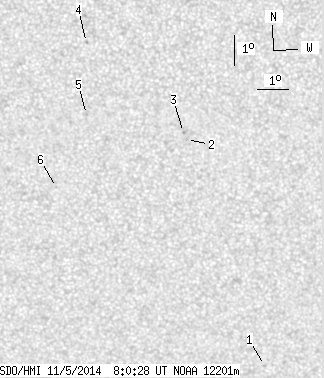

back to the solar disc SDO HMI 2014-11-05 08:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.77 | -28.89 | 83.40 | 4.71 | 187.56 | 0.5489 | -574.0 | -507.3 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -21.18 | 80.62 | 1.94 | 184.26 | 0.4275 | 602.0 | 533.7 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -20.95 | 80.53 | 1.84 | 184.09 | 0.4237 | 801.0 | 674.0 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -18.02 | 77.46 | -1.22 | 176.91 | 0.3762 | 797.0 | 589.3 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -20.35 | 77.44 | -1.24 | 177.18 | 0.4137 | 868.0 | 688.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -22.76 | 76.45 | -2.23 | 175.44 | 0.4526 | 695.0 | 473.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
