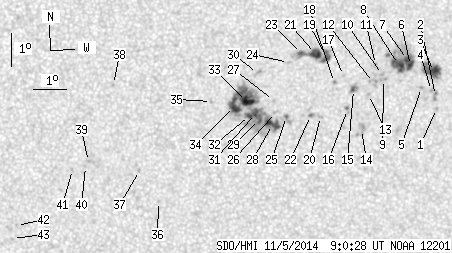

SDO HMI 2014-11-05 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 80.62 | 274.10 | 40.90 | 139.08 | -4.93 | 86.57 | 8.44 | 222.76 | 0.2163 | 20.9 | 19.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 09:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.80 | -5.42 | 90.36 | 12.22 | 232.62 | 0.2665 | 777.0 | 606.6 | |
| 0.00 | 3.72 | 0.00 | 1.91 | -5.03 | 90.32 | 12.19 | 233.73 | 0.2620 | 936.0 | 761.3 | |
| 8.99 | 20.65 | 4.60 | 10.57 | -4.31 | 90.25 | 12.11 | 235.87 | 0.2540 | 1056.5 | 850.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -4.88 | 90.20 | 12.06 | 233.92 | 0.2588 | 1055.0 | 894.4 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -4.78 | 89.89 | 11.76 | 233.52 | 0.2537 | 1019.0 | 816.5 | |
| 4.23 | 47.01 | 2.16 | 23.96 | -4.11 | 89.55 | 11.41 | 234.89 | 0.2423 | 1011.5 | 613.3 | |
| 3.98 | -6.00 | 2.03 | -6.00 | -3.93 | 89.45 | 11.32 | 235.29 | 0.2392 | 1112.5 | 999999 | |
| 10.80 | -6.00 | 5.51 | -6.00 | -4.08 | 89.18 | 11.05 | 234.13 | 0.2369 | 1226.8 | 999999 | |
| 0.00 | 2.59 | 0.00 | 1.32 | -4.52 | 88.73 | 10.60 | 231.47 | 0.2354 | 989.0 | 770.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -4.37 | 88.70 | 10.56 | 231.89 | 0.2334 | 1169.0 | 856.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -4.07 | 88.48 | 10.35 | 232.36 | 0.2273 | 1013.0 | 799.6 | |
| 0.00 | 5.01 | 0.00 | 2.55 | -4.61 | 88.43 | 10.29 | 230.37 | 0.2323 | 620.0 | 705.7 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -4.97 | 88.28 | 10.15 | 228.79 | 0.2344 | 981.0 | 750.6 | |
| 0.00 | 7.26 | 0.00 | 3.71 | -6.02 | 88.09 | 9.95 | 225.00 | 0.2442 | 781.0 | 721.9 | |
| 1.38 | 5.70 | 0.70 | 2.90 | -4.81 | 87.83 | 9.69 | 227.98 | 0.2268 | 1066.5 | 712.9 | |
| 0.00 | 2.42 | 0.00 | 1.23 | -5.41 | 87.65 | 9.52 | 225.55 | 0.2317 | 1101.0 | 883.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -4.39 | 87.52 | 9.38 | 228.49 | 0.2181 | -749.0 | -572.3 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -4.59 | 87.25 | 9.11 | 226.95 | 0.2171 | -1031.0 | -851.8 | |
| 4.32 | 27.91 | 2.19 | 14.11 | -3.81 | 87.00 | 8.86 | 228.93 | 0.2049 | 1010.2 | 684.9 | |
| 0.00 | 2.16 | 0.00 | 1.10 | -5.61 | 86.84 | 8.70 | 222.37 | 0.2245 | -775.0 | -640.0 | |
| 7.09 | -19.00 | 3.58 | -19.00 | -3.72 | 86.67 | 8.53 | 228.19 | 0.1996 | 1240.5 | 999999 | |
| 0.43 | 2.33 | 0.22 | 1.18 | -5.58 | 86.54 | 8.40 | 221.46 | 0.2206 | -894.0 | -769.1 | |
| 1.73 | -19.00 | 0.87 | -19.00 | -3.71 | 86.25 | 8.11 | 226.76 | 0.1942 | 992.2 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -3.98 | 85.86 | 7.72 | 224.36 | 0.1926 | 788.0 | 620.5 | |
| 0.52 | 4.32 | 0.26 | 2.19 | -5.60 | 85.81 | 7.68 | 218.85 | 0.2130 | -904.8 | -719.1 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -5.48 | 85.48 | 7.35 | 217.98 | 0.2078 | -840.0 | -664.7 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -5.11 | 85.42 | 7.28 | 218.84 | 0.2022 | -705.0 | -544.0 | |
| 7.86 | 115.19 | 3.98 | 58.22 | -5.84 | 85.39 | 7.26 | 216.61 | 0.2118 | -1062.7 | -598.6 | |
| 2.51 | -28.00 | 1.27 | -28.00 | -5.68 | 85.00 | 6.87 | 215.53 | 0.2057 | -962.0 | 999999 | |
| 0.00 | 3.20 | 0.00 | 1.61 | -4.30 | 84.93 | 6.79 | 219.57 | 0.1860 | 758.0 | 535.3 | |
| 5.10 | -28.00 | 2.58 | -28.00 | -5.50 | 84.88 | 6.74 | 215.56 | 0.2019 | -1247.1 | 999999 | |
| 3.02 | -28.00 | 1.53 | -28.00 | -5.56 | 84.70 | 6.56 | 214.67 | 0.2010 | -1184.5 | 999999 | |
| 9.07 | -28.00 | 4.58 | -28.00 | -5.14 | 84.61 | 6.47 | 215.51 | 0.1941 | -1309.5 | 999999 | |
| 9.59 | -28.00 | 4.84 | -28.00 | -5.28 | 84.25 | 6.11 | 213.55 | 0.1927 | -1203.6 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -5.13 | 83.56 | 5.42 | 210.89 | 0.1841 | 648.0 | 599.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -8.14 | 81.99 | 3.85 | 197.65 | 0.2204 | -799.0 | -576.6 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -7.20 | 81.41 | 3.28 | 196.37 | 0.2021 | -833.0 | -701.3 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -4.60 | 80.62 | 2.49 | 196.26 | 0.1553 | -847.0 | -661.2 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -6.92 | 79.88 | 1.75 | 189.13 | 0.1916 | -942.0 | -724.6 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -7.07 | 79.79 | 1.66 | 188.55 | 0.1939 | -937.0 | -696.3 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -7.16 | 79.40 | 1.27 | 186.51 | 0.1946 | -883.0 | -628.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -8.86 | 77.72 | -0.41 | 178.16 | 0.2226 | -854.0 | -616.7 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -9.25 | 77.60 | -0.53 | 177.69 | 0.2294 | -771.0 | -751.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
