SDO HMI 2014-11-05 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79.66 | 292.38 | 40.51 | 148.56 | -4.94 | 86.50 | 8.91 | 224.35 | 0.2218 | 162.0 | -2.8 | |
|
previous
or next observation for the same group /

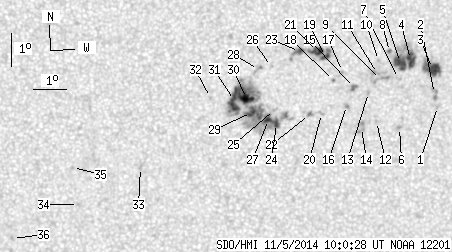

back to the solar disc SDO HMI 2014-11-05 10:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.44 | -5.44 | 90.43 | 12.84 | 233.93 | 0.2749 | 710.0 | 565.7 | |
| 0.00 | 5.27 | 0.00 | 2.71 | -5.04 | 90.33 | 12.74 | 234.90 | 0.2697 | 601.0 | 826.7 | |
| 13.22 | 22.03 | 6.78 | 11.30 | -4.29 | 90.25 | 12.66 | 237.11 | 0.2615 | 1043.2 | 661.8 | |
| 8.38 | 42.43 | 4.29 | 21.68 | -4.01 | 89.58 | 11.99 | 236.59 | 0.2494 | 1034.3 | 641.2 | |
| 10.80 | -4.00 | 5.52 | -4.00 | -4.10 | 89.27 | 11.68 | 235.61 | 0.2459 | 1214.8 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -6.05 | 89.28 | 11.69 | 229.52 | 0.2661 | 928.0 | 778.6 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -4.58 | 89.22 | 11.63 | 233.90 | 0.2498 | 595.0 | 534.6 | |
| 0.43 | 1.90 | 0.22 | 0.97 | -3.76 | 88.93 | 11.35 | 235.98 | 0.2379 | 1132.4 | 909.3 | |
| 0.00 | 5.96 | 0.00 | 3.04 | -4.60 | 88.67 | 11.08 | 232.50 | 0.2426 | 618.0 | 800.7 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -4.03 | 88.60 | 11.01 | 234.25 | 0.2359 | 940.0 | 724.4 | |
| 0.00 | 5.79 | 0.00 | 2.95 | -4.42 | 88.58 | 10.99 | 232.86 | 0.2395 | 940.0 | 795.3 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -5.86 | 88.57 | 10.98 | 228.31 | 0.2550 | 823.0 | 650.8 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -4.98 | 88.31 | 10.72 | 230.32 | 0.2420 | 1013.0 | 774.1 | |
| 0.00 | 7.34 | 0.00 | 3.76 | -6.03 | 88.12 | 10.53 | 226.59 | 0.2513 | 737.0 | 750.9 | |
| 0.00 | 3.80 | 0.00 | 1.94 | -4.83 | 87.89 | 10.30 | 229.68 | 0.2347 | 1210.0 | 913.4 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -5.36 | 87.65 | 10.06 | 227.30 | 0.2378 | 1160.0 | 932.2 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -4.34 | 87.52 | 9.93 | 230.27 | 0.2246 | -737.0 | -596.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -4.61 | 87.25 | 9.66 | 228.58 | 0.2240 | -849.0 | -759.8 | |
| 3.02 | 26.96 | 1.53 | 13.64 | -3.88 | 87.00 | 9.41 | 230.37 | 0.2127 | 968.6 | 819.2 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -5.60 | 86.90 | 9.31 | 224.36 | 0.2313 | -778.0 | -529.1 | |
| 6.83 | -19.00 | 3.46 | -19.00 | -3.73 | 86.76 | 9.17 | 230.19 | 0.2079 | 1259.1 | 999999 | |
| 0.43 | 2.59 | 0.22 | 1.32 | -5.62 | 86.54 | 8.95 | 223.14 | 0.2274 | -980.0 | -782.4 | |
| 2.51 | -19.00 | 1.27 | -19.00 | -3.72 | 86.21 | 8.62 | 228.48 | 0.2008 | 1107.2 | 999999 | |
| 3.54 | 139.20 | 1.80 | 70.45 | -5.88 | 85.54 | 7.95 | 219.03 | 0.2196 | -917.2 | -556.4 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -5.46 | 85.48 | 7.89 | 220.05 | 0.2133 | -775.0 | -664.8 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -4.16 | 85.37 | 7.78 | 223.93 | 0.1956 | 163.0 | 143.7 | |
| 4.58 | -24.00 | 2.32 | -24.00 | -5.76 | 85.30 | 7.71 | 218.52 | 0.2153 | -1124.6 | 999999 | |
| 0.00 | 3.72 | 0.00 | 1.87 | -4.25 | 84.98 | 7.39 | 222.15 | 0.1921 | 862.0 | 605.4 | |
| 5.79 | -24.00 | 2.93 | -24.00 | -5.54 | 84.79 | 7.20 | 217.23 | 0.2070 | -1243.3 | 999999 | |
| 9.50 | -24.00 | 4.80 | -24.00 | -5.12 | 84.63 | 7.04 | 217.91 | 0.1997 | -1332.3 | 999999 | |
| 10.63 | -24.00 | 5.37 | -24.00 | -5.18 | 84.27 | 6.68 | 216.29 | 0.1967 | -1196.2 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -5.08 | 83.55 | 5.96 | 213.50 | 0.1883 | 713.0 | 524.6 | |
| 0.00 | 2.07 | 0.00 | 1.05 | -7.18 | 81.47 | 3.88 | 199.21 | 0.2048 | -828.0 | -599.0 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -8.29 | 79.61 | 2.02 | 189.37 | 0.2155 | -801.0 | -625.4 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -7.17 | 79.43 | 1.84 | 189.39 | 0.1960 | -777.0 | -490.8 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -9.32 | 77.63 | 0.04 | 180.16 | 0.2303 | -777.0 | -582.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
