SDO HMI 2014-11-05 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.79 | 13.39 | 3.47 | 7.92 | -17.57 | 101.50 | 25.00 | 227.67 | 0.5477 | 385.1 | 221.2 | |
|
previous
or next observation for the same group /

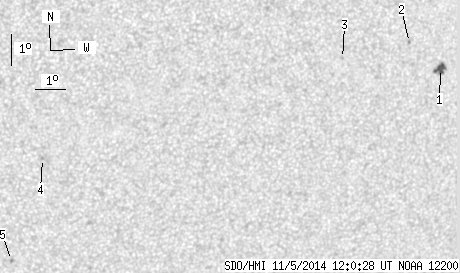

back to the solar disc SDO HMI 2014-11-05 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.79 | 8.81 | 3.47 | 5.29 | -16.94 | 104.13 | 27.63 | 231.83 | 0.5666 | 882.1 | 667.8 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -16.08 | 102.92 | 26.42 | 231.90 | 0.5455 | 826.0 | 660.2 | |
| 0.00 | 1.12 | 0.00 | 0.65 | -16.51 | 100.68 | 24.19 | 228.83 | 0.5239 | 655.0 | 454.3 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -19.48 | 91.06 | 14.56 | 210.96 | 0.4627 | -809.0 | -671.5 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -22.81 | 90.36 | 13.87 | 206.24 | 0.5016 | -856.0 | -772.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
