SDO HMI 2014-11-05 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.95 | 274.10 | 39.25 | 139.71 | -4.93 | 86.44 | 9.95 | 227.59 | 0.2340 | 165.7 | -15.5 | |
|
previous
or next observation for the same group /

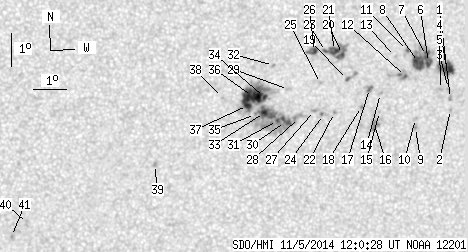

back to the solar disc SDO HMI 2014-11-05 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 1.12 | -5.22 | 90.46 | 13.97 | 236.86 | 0.2884 | 818.0 | 682.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -5.55 | 90.47 | 13.97 | 235.91 | 0.2915 | 707.0 | 638.9 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -4.92 | 90.39 | 13.90 | 237.62 | 0.2847 | 906.0 | 778.4 | |
| 11.32 | 17.10 | 5.83 | 8.82 | -4.32 | 90.32 | 13.83 | 239.32 | 0.2783 | 1042.9 | 779.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -4.94 | 90.15 | 13.65 | 237.08 | 0.2814 | 1005.0 | 715.8 | |
| 3.46 | 36.71 | 1.78 | 18.85 | -4.13 | 89.77 | 13.27 | 238.87 | 0.2687 | 1026.8 | 661.6 | |
| 3.71 | -6.00 | 1.91 | -6.00 | -3.92 | 89.70 | 13.21 | 239.43 | 0.2659 | 1065.9 | 999999 | |
| 11.49 | -6.00 | 5.90 | -6.00 | -4.12 | 89.46 | 12.96 | 238.29 | 0.2642 | 1188.7 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.16 | -6.08 | 89.41 | 12.91 | 232.26 | 0.2822 | 965.0 | 745.3 | |
| 0.00 | 1.90 | 0.00 | 0.98 | -5.80 | 89.40 | 12.90 | 233.02 | 0.2794 | 772.0 | 698.3 | |
| 0.60 | 1.55 | 0.31 | 0.80 | -3.76 | 89.12 | 12.62 | 238.81 | 0.2561 | 999.0 | 810.3 | |
| 0.69 | 7.86 | 0.35 | 4.03 | -4.53 | 89.07 | 12.57 | 236.16 | 0.2625 | 1128.2 | 833.3 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -3.93 | 88.76 | 12.26 | 237.47 | 0.2524 | 782.0 | 575.5 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -5.03 | 88.32 | 11.82 | 232.90 | 0.2570 | 738.0 | 568.3 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -5.58 | 88.29 | 11.80 | 231.20 | 0.2623 | 825.0 | 720.3 | |
| 0.00 | 6.22 | 0.00 | 3.19 | -5.96 | 88.15 | 11.65 | 229.70 | 0.2646 | 949.0 | 864.6 | |
| 0.86 | 4.15 | 0.44 | 2.12 | -4.88 | 87.98 | 11.48 | 232.59 | 0.2508 | 1064.4 | 791.6 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -5.42 | 87.74 | 11.25 | 230.33 | 0.2534 | 1019.0 | 949.3 | |
| 0.60 | 5.18 | 0.31 | 2.64 | -4.60 | 87.30 | 10.81 | 231.82 | 0.2389 | -744.1 | -623.6 | |
| 1.04 | 21.60 | 0.53 | 10.98 | -3.85 | 87.14 | 10.65 | 233.98 | 0.2290 | 1018.4 | 850.5 | |
| 5.18 | -20.00 | 2.63 | -20.00 | -3.72 | 86.90 | 10.40 | 233.78 | 0.2244 | 1275.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -5.59 | 86.93 | 10.43 | 227.67 | 0.2448 | -781.0 | -607.2 | |
| 0.60 | -20.00 | 0.31 | -20.00 | -3.75 | 86.63 | 10.13 | 232.96 | 0.2209 | 1162.7 | 999999 | |
| 0.00 | 1.99 | 0.00 | 1.01 | -5.64 | 86.59 | 10.10 | 226.57 | 0.2413 | -804.0 | -798.9 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -4.71 | 86.49 | 9.99 | 229.24 | 0.2294 | 714.0 | 574.2 | |
| 2.25 | 6.74 | 1.14 | 3.42 | -3.74 | 86.30 | 9.80 | 232.05 | 0.2164 | 1104.5 | 907.3 | |
| 0.00 | 2.85 | 0.00 | 1.45 | -5.52 | 86.32 | 9.82 | 226.16 | 0.2365 | -762.0 | -587.5 | |
| 0.00 | 6.91 | 0.00 | 3.52 | -5.72 | 85.87 | 9.37 | 224.19 | 0.2335 | -460.0 | -647.3 | |
| 0.00 | 2.25 | 0.00 | 1.14 | -4.87 | 85.52 | 9.03 | 225.77 | 0.2192 | -796.0 | -591.6 | |
| 3.97 | 126.81 | 2.02 | 64.35 | -5.84 | 85.45 | 8.95 | 222.52 | 0.2300 | -967.5 | -515.1 | |
| 1.38 | -30.00 | 0.70 | -30.00 | -5.80 | 85.20 | 8.71 | 221.84 | 0.2268 | -1152.4 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -4.15 | 85.06 | 8.57 | 226.76 | 0.2049 | 992.0 | 729.0 | |
| 3.89 | -30.00 | 1.97 | -30.00 | -5.56 | 84.81 | 8.31 | 221.25 | 0.2192 | -1242.0 | 999999 | |
| 1.81 | -30.00 | 0.92 | -30.00 | -5.11 | 84.80 | 8.31 | 222.63 | 0.2134 | -927.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -5.62 | 84.54 | 8.04 | 220.14 | 0.2170 | -686.0 | -652.0 | |
| 19.87 | -30.00 | 10.06 | -30.00 | -5.07 | 84.44 | 7.94 | 221.47 | 0.2088 | -1230.2 | 999999 | |
| 4.23 | -30.00 | 2.14 | -30.00 | -5.34 | 84.29 | 7.80 | 220.09 | 0.2107 | -1189.0 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -5.09 | 83.54 | 7.04 | 218.00 | 0.1992 | 717.0 | 534.8 | |
| 0.00 | 2.16 | 0.00 | 1.09 | -7.10 | 81.51 | 5.02 | 204.44 | 0.2107 | -886.0 | -706.1 | |
| 0.00 | 2.76 | 0.00 | 1.40 | -8.87 | 77.71 | 1.21 | 185.39 | 0.2235 | -652.0 | -655.4 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -9.27 | 77.23 | 0.73 | 183.16 | 0.2296 | -984.0 | -806.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
