SDO HMI 2014-11-05 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 101.94 | 524.18 | 128.15 | 654.03 | 15.55 | 9.61 | -66.88 | 74.73 | 0.9179 | -4.8 | 201.3 | |
|
previous
or next observation for the same group /

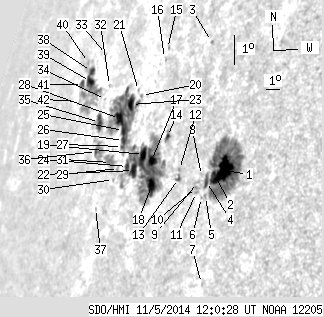

back to the solar disc SDO HMI 2014-11-05 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.21 | 149.62 | 27.75 | 152.51 | 15.09 | 15.56 | -60.93 | 74.91 | 0.8760 | -692.1 | -247.1 | |
| 1.90 | -1.00 | 1.97 | -1.00 | 14.97 | 15.04 | -61.45 | 75.08 | 0.8802 | -142.0 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.08 | 18.90 | 12.51 | -63.99 | 70.88 | 0.9017 | -293.0 | -255.6 | |
| 2.68 | -1.00 | 2.81 | -1.00 | 14.70 | 14.65 | -61.84 | 75.41 | 0.8831 | -178.5 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.44 | 14.25 | 14.80 | -61.69 | 75.91 | 0.8817 | -419.0 | -389.8 | |
| 0.00 | 0.69 | 0.00 | 0.73 | 14.21 | 14.56 | -61.93 | 75.98 | 0.8836 | -284.0 | -283.9 | |
| 0.00 | 0.86 | 0.00 | 0.87 | 11.66 | 15.64 | -60.86 | 78.83 | 0.8739 | -183.0 | -192.8 | |
| 0.00 | 1.47 | 0.00 | 1.56 | 14.86 | 14.24 | -62.25 | 75.26 | 0.8865 | 296.0 | 229.5 | |
| 0.00 | 1.73 | 0.00 | 1.84 | 14.64 | 14.09 | -62.41 | 75.52 | 0.8876 | 257.0 | 242.8 | |
| 0.00 | 1.81 | 0.00 | 1.93 | 14.48 | 14.10 | -62.40 | 75.69 | 0.8874 | 351.0 | 318.9 | |
| 0.00 | 1.30 | 0.00 | 1.38 | 14.34 | 14.17 | -62.33 | 75.86 | 0.8868 | 333.0 | 296.9 | |
| 0.00 | 1.21 | 0.00 | 1.35 | 14.95 | 12.69 | -63.81 | 75.25 | 0.8983 | -160.0 | -87.0 | |
| 1.04 | 3.46 | 1.15 | 3.85 | 14.68 | 12.76 | -63.73 | 75.55 | 0.8977 | -348.2 | -149.3 | |
| 1.21 | 5.18 | 1.42 | 6.10 | 15.88 | 11.28 | -65.22 | 74.30 | 0.9089 | 433.8 | 461.7 | |
| 0.00 | 0.52 | 0.00 | 0.66 | 18.50 | 9.44 | -67.06 | 71.56 | 0.9223 | 583.0 | 579.5 | |
| 0.00 | 0.86 | 0.00 | 1.09 | 18.19 | 9.44 | -67.05 | 71.90 | 0.9221 | 536.0 | 549.3 | |
| 4.49 | 254.66 | 5.41 | 325.59 | 15.10 | 10.55 | -65.94 | 75.20 | 0.9136 | 823.9 | 354.8 | |
| 7.95 | -17.00 | 9.42 | -17.00 | 14.36 | 10.98 | -65.51 | 75.99 | 0.9104 | -103.3 | 999999 | |
| 6.48 | -17.00 | 8.04 | -17.00 | 15.24 | 9.84 | -66.65 | 75.08 | 0.9185 | 657.5 | 999999 | |
| 0.00 | 1.30 | 0.00 | 1.70 | 16.98 | 8.47 | -68.02 | 73.26 | 0.9278 | 470.0 | 429.6 | |
| 0.00 | 0.95 | 0.00 | 1.27 | 17.11 | 8.12 | -68.38 | 73.13 | 0.9301 | 175.0 | 150.3 | |
| 6.65 | -17.00 | 8.39 | -17.00 | 14.72 | 9.38 | -67.12 | 75.66 | 0.9214 | -216.5 | 999999 | |
| 6.05 | -17.00 | 8.15 | -17.00 | 16.66 | 7.86 | -68.63 | 73.63 | 0.9315 | 665.5 | 999999 | |
| 3.11 | -17.00 | 4.01 | -17.00 | 14.81 | 8.83 | -67.66 | 75.58 | 0.9249 | -128.2 | 999999 | |
| 3.11 | -17.00 | 4.19 | -17.00 | 15.85 | 7.78 | -68.71 | 74.50 | 0.9318 | 118.2 | 999999 | |
| 2.51 | -17.00 | 3.35 | -17.00 | 15.56 | 7.99 | -68.50 | 74.81 | 0.9304 | -113.0 | 999999 | |
| 1.38 | -17.00 | 1.84 | -17.00 | 15.38 | 8.04 | -68.46 | 75.00 | 0.9301 | -269.6 | 999999 | |
| 7.52 | -17.00 | 10.41 | -17.00 | 16.19 | 7.18 | -69.32 | 74.16 | 0.9355 | -97.4 | 999999 | |
| 0.00 | 1.47 | 0.00 | 1.95 | 14.71 | 8.15 | -68.34 | 75.72 | 0.9292 | -153.0 | -71.7 | |
| 0.00 | 0.86 | 0.00 | 1.15 | 14.36 | 7.96 | -68.53 | 76.10 | 0.9304 | 405.0 | 345.5 | |
| 0.00 | 12.01 | 0.00 | 16.49 | 14.84 | 7.38 | -69.12 | 75.59 | 0.9340 | 106.0 | 258.7 | |
| 0.00 | 1.04 | 0.00 | 1.55 | 17.10 | 5.49 | -71.01 | 73.25 | 0.9453 | 398.0 | 394.1 | |
| 0.00 | 1.04 | 0.00 | 1.65 | 17.99 | 4.33 | -72.16 | 72.34 | 0.9515 | 66.0 | 67.0 | |
| 0.00 | 0.26 | 0.00 | 0.39 | 16.67 | 5.49 | -71.01 | 73.71 | 0.9452 | 423.0 | 466.3 | |
| 6.65 | 11.14 | 9.94 | 16.69 | 15.96 | 5.51 | -70.98 | 74.46 | 0.9449 | -118.8 | 103.7 | |
| 0.86 | 15.29 | 1.27 | 22.24 | 15.09 | 5.93 | -70.57 | 75.37 | 0.9425 | 343.7 | 369.3 | |
| 0.00 | 0.60 | 0.00 | 0.84 | 13.41 | 7.02 | -69.48 | 77.13 | 0.9360 | -189.0 | -160.6 | |
| 3.11 | 50.36 | 5.18 | 82.42 | 17.40 | 3.35 | -73.15 | 72.99 | 0.9564 | 264.2 | 386.2 | |
| 5.70 | -38.00 | 9.43 | -38.00 | 17.10 | 3.55 | -72.95 | 73.30 | 0.9554 | 502.5 | 999999 | |
| 0.00 | 1.30 | 0.00 | 2.24 | 17.64 | 2.75 | -73.74 | 72.75 | 0.9592 | -407.0 | -375.5 | |
| 2.33 | -38.00 | 4.02 | -38.00 | 16.96 | 2.81 | -73.69 | 73.46 | 0.9589 | 113.3 | 999999 | |
| 0.00 | 0.86 | 0.00 | 1.47 | 16.44 | 2.90 | -73.60 | 74.00 | 0.9584 | 457.0 | 506.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
