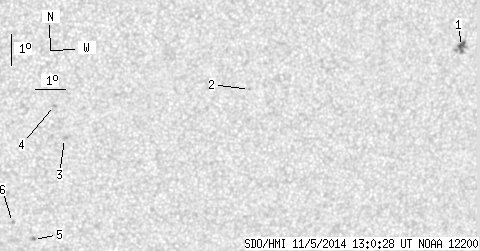

SDO HMI 2014-11-05 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.80 | 15.63 | 2.29 | 9.17 | -18.30 | 98.80 | 22.85 | 223.67 | 0.5343 | -255.9 | -56.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.80 | 8.90 | 2.29 | 5.37 | -16.93 | 104.14 | 28.19 | 232.38 | 0.5728 | 890.1 | 680.9 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -18.08 | 97.03 | 21.08 | 222.71 | 0.5061 | -780.0 | -576.7 | |
| 0.00 | 1.90 | 0.00 | 1.06 | -19.52 | 91.07 | 15.12 | 211.86 | 0.4678 | -721.0 | -651.7 | |
| 0.00 | 1.55 | 0.00 | 0.86 | -18.45 | 90.64 | 14.70 | 212.45 | 0.4504 | -747.0 | -622.1 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -22.82 | 90.38 | 14.43 | 207.14 | 0.5056 | -862.0 | -782.9 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -22.24 | 89.62 | 13.68 | 206.48 | 0.4927 | -794.0 | -623.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
