SDO HMI 2014-11-05 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.40 | 266.54 | 39.52 | 136.14 | -5.03 | 86.49 | 10.54 | 228.86 | 0.2433 | 3.8 | 48.4 | |
|
previous
or next observation for the same group /

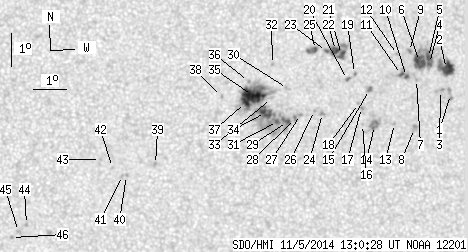

back to the solar disc SDO HMI 2014-11-05 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.75 | 0.00 | 2.46 | -5.11 | 90.50 | 14.55 | 238.24 | 0.2956 | 729.0 | 755.0 | |
| 12.01 | 19.26 | 6.21 | 9.95 | -4.33 | 90.36 | 14.41 | 240.32 | 0.2869 | 1007.2 | 748.0 | |
| 0.00 | 2.85 | 0.00 | 1.47 | -4.99 | 90.19 | 14.24 | 238.05 | 0.2901 | 913.0 | 797.0 | |
| 1.81 | 35.41 | 0.93 | 18.23 | -4.17 | 89.83 | 13.88 | 239.89 | 0.2779 | 1056.1 | 693.0 | |
| 3.71 | -4.00 | 1.91 | -4.00 | -3.99 | 89.80 | 13.85 | 240.39 | 0.2759 | 1056.8 | 999999 | |
| 10.97 | -4.00 | 5.65 | -4.00 | -4.10 | 89.52 | 13.58 | 239.53 | 0.2729 | 1198.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -4.64 | 89.44 | 13.49 | 237.69 | 0.2764 | 794.0 | 623.6 | |
| 0.00 | 4.84 | 0.00 | 2.50 | -6.12 | 89.41 | 13.46 | 233.31 | 0.2900 | 730.0 | 490.6 | |
| 0.00 | 2.16 | 0.00 | 1.11 | -3.80 | 89.21 | 13.27 | 239.93 | 0.2658 | 1016.0 | 872.8 | |
| 0.86 | 7.51 | 0.44 | 3.86 | -4.55 | 89.13 | 13.19 | 237.38 | 0.2712 | 1127.4 | 891.2 | |
| 1.04 | -10.00 | 0.53 | -10.00 | -4.49 | 88.98 | 13.03 | 237.27 | 0.2685 | 1145.6 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -3.88 | 88.85 | 12.90 | 238.95 | 0.2612 | 857.0 | 603.8 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -5.96 | 88.79 | 12.85 | 232.46 | 0.2801 | 888.0 | 692.9 | |
| 0.00 | 7.08 | 0.00 | 3.64 | -6.01 | 88.18 | 12.24 | 230.96 | 0.2726 | 884.0 | 860.0 | |
| 0.00 | 3.20 | 0.00 | 1.64 | -4.92 | 88.01 | 12.06 | 233.82 | 0.2591 | 1133.0 | 928.9 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -5.97 | 87.82 | 11.87 | 230.20 | 0.2674 | 803.0 | 608.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -5.46 | 87.77 | 11.83 | 231.62 | 0.2615 | 1029.0 | 926.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -5.34 | 87.68 | 11.73 | 231.77 | 0.2589 | 957.0 | 708.8 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -4.43 | 87.54 | 11.60 | 234.31 | 0.2479 | -659.0 | -648.1 | |
| 0.43 | 2.07 | 0.22 | 1.06 | -4.61 | 87.33 | 11.39 | 233.23 | 0.2468 | -802.0 | -530.0 | |
| 2.94 | 18.22 | 1.50 | 9.28 | -3.86 | 87.14 | 11.19 | 235.31 | 0.2367 | 974.6 | 784.9 | |
| 4.84 | -21.00 | 2.46 | -21.00 | -3.73 | 86.96 | 11.01 | 235.29 | 0.2329 | 1239.4 | 999999 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -3.76 | 86.69 | 10.74 | 234.52 | 0.2294 | 1140.0 | 984.8 | |
| 0.00 | 2.25 | 0.00 | 1.15 | -5.62 | 86.59 | 10.64 | 228.14 | 0.2479 | -942.0 | -759.4 | |
| 1.21 | 6.13 | 0.61 | 3.12 | -3.70 | 86.35 | 10.40 | 233.89 | 0.2241 | 1143.4 | 975.9 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -5.53 | 86.35 | 10.40 | 227.76 | 0.2438 | -625.0 | -560.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -5.64 | 85.92 | 9.98 | 226.23 | 0.2398 | -802.0 | -647.8 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -5.76 | 85.77 | 9.83 | 225.44 | 0.2394 | -859.0 | -739.1 | |
| 1.38 | 61.32 | 0.70 | 31.21 | -5.85 | 85.53 | 9.59 | 224.46 | 0.2376 | -926.2 | -513.8 | |
| 0.00 | 2.33 | 0.00 | 1.19 | -4.85 | 85.52 | 9.57 | 227.52 | 0.2256 | -672.0 | -567.0 | |
| 1.47 | -29.00 | 0.75 | -29.00 | -5.84 | 85.23 | 9.28 | 223.55 | 0.2340 | -1100.7 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.39 | -4.13 | 85.06 | 9.11 | 228.60 | 0.2115 | 963.0 | 832.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -5.15 | 85.04 | 9.09 | 225.09 | 0.2232 | -486.0 | -339.9 | |
| 8.90 | -29.00 | 4.52 | -29.00 | -5.57 | 84.86 | 8.92 | 223.23 | 0.2263 | -1168.5 | 999999 | |
| 21.68 | 58.04 | 10.99 | 29.44 | -5.05 | 84.46 | 8.52 | 223.53 | 0.2152 | -1250.4 | -433.4 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -4.63 | 84.34 | 8.39 | 224.50 | 0.2085 | -663.0 | -397.5 | |
| 4.15 | -35.00 | 2.10 | -35.00 | -5.26 | 84.26 | 8.31 | 222.16 | 0.2154 | -1223.3 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -5.07 | 83.53 | 7.58 | 220.16 | 0.2048 | 709.0 | 566.7 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -7.11 | 81.57 | 5.62 | 206.97 | 0.2153 | -923.0 | -784.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -7.43 | 80.70 | 4.75 | 202.66 | 0.2141 | -845.0 | -679.7 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -7.43 | 80.58 | 4.63 | 202.15 | 0.2133 | -871.0 | -650.1 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -7.19 | 80.28 | 4.33 | 201.25 | 0.2075 | -661.0 | -528.6 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -6.94 | 79.91 | 3.97 | 200.03 | 0.2014 | -855.0 | -699.5 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -8.91 | 77.70 | 1.75 | 187.76 | 0.2251 | -1030.0 | -771.9 | |
| 0.00 | 1.99 | 0.00 | 1.01 | -9.12 | 77.46 | 1.51 | 186.60 | 0.2282 | -851.0 | -695.6 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -9.30 | 77.25 | 1.30 | 185.61 | 0.2309 | -948.0 | -823.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
