SDO HMI 2014-11-05 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.58 | 0.00 | 5.38 | -22.33 | 75.87 | -0.08 | 182.22 | 0.4608 | 357.4 | 246.5 | |
|
previous
or next observation for the same group /

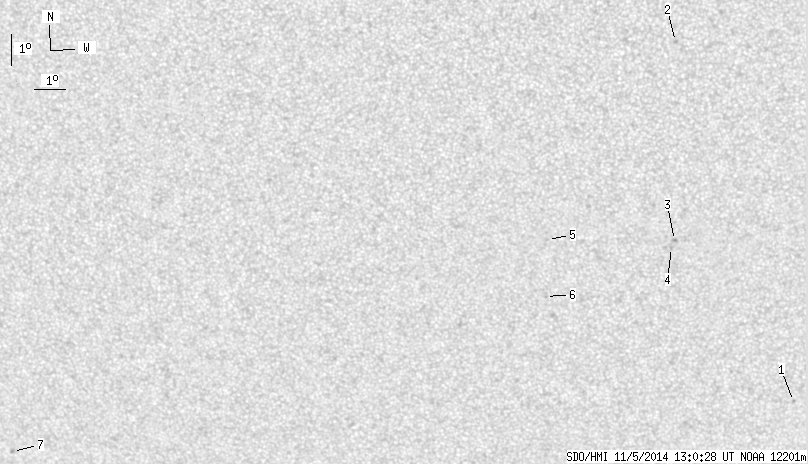

back to the solar disc SDO HMI 2014-11-05 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.65 | -26.35 | 84.73 | 8.78 | 195.20 | 0.5238 | -772.0 | -649.3 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -14.54 | 80.44 | 4.49 | 193.46 | 0.3269 | 896.0 | 792.8 | |
| 0.00 | 2.07 | 0.00 | 1.14 | -20.91 | 80.56 | 4.61 | 190.15 | 0.4283 | 932.0 | 684.7 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -21.14 | 80.47 | 4.52 | 189.86 | 0.4316 | 695.0 | 573.8 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -20.86 | 76.52 | 0.57 | 181.27 | 0.4211 | 750.0 | 665.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -22.74 | 76.46 | 0.51 | 181.05 | 0.4507 | 736.0 | 563.8 | |
| 0.00 | 1.73 | 0.00 | 1.06 | -28.21 | 58.21 | -17.74 | 153.09 | 0.5955 | -735.0 | -635.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
