SDO HMI 2014-11-05 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.45 | 15.98 | 2.09 | 9.33 | -18.92 | 97.23 | 21.84 | 221.62 | 0.5313 | -321.0 | -181.9 | |
|
previous
or next observation for the same group /

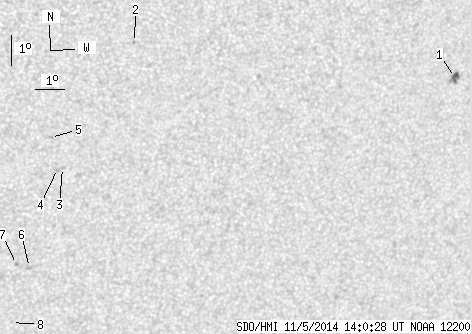

back to the solar disc SDO HMI 2014-11-05 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.45 | 7.43 | 2.09 | 4.50 | -16.96 | 104.15 | 28.76 | 232.88 | 0.5793 | 887.5 | 694.9 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -15.53 | 93.13 | 17.74 | 221.67 | 0.4434 | -768.0 | -634.5 | |
| 0.00 | 1.55 | 0.00 | 0.87 | -19.47 | 91.16 | 15.76 | 212.98 | 0.4724 | -748.0 | -590.3 | |
| 0.00 | 0.35 | 0.00 | 0.19 | -19.50 | 91.00 | 15.60 | 212.68 | 0.4714 | -395.0 | -481.0 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -18.49 | 90.68 | 15.28 | 213.40 | 0.4559 | -753.0 | -659.8 | |
| 0.00 | 2.16 | 0.00 | 1.24 | -22.74 | 90.41 | 15.02 | 208.15 | 0.5085 | -671.0 | -643.5 | |
| 0.00 | 1.55 | 0.00 | 0.89 | -22.63 | 89.97 | 14.57 | 207.56 | 0.5040 | -803.0 | -644.2 | |
| 0.00 | 0.69 | 0.00 | 0.40 | -24.57 | 90.02 | 14.62 | 205.79 | 0.5298 | -635.0 | -511.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
