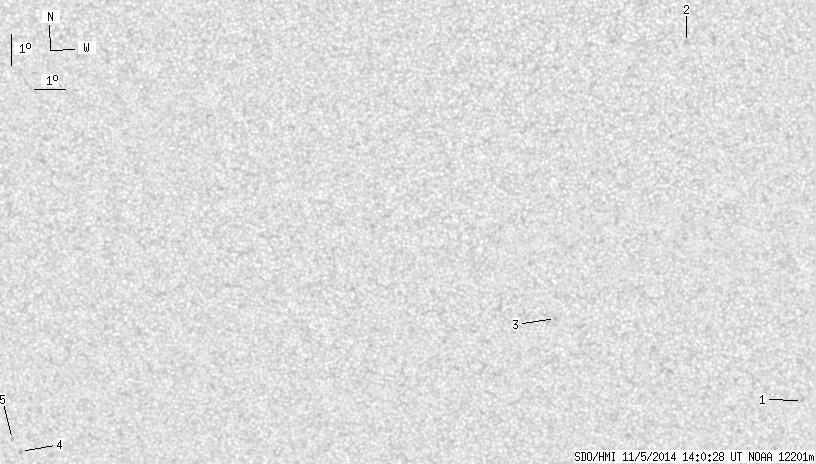

SDO HMI 2014-11-05 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.95 | 0.00 | 4.58 | -24.29 | 71.63 | -3.77 | 176.17 | 0.5046 | -128.0 | -169.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.10 | -26.36 | 84.74 | 9.35 | 196.12 | 0.5262 | -730.0 | -594.0 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -14.61 | 80.47 | 5.07 | 195.07 | 0.3303 | 848.0 | 712.7 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -23.51 | 76.49 | 1.09 | 182.17 | 0.4630 | 746.0 | 525.3 | |
| 0.00 | 1.30 | 0.00 | 0.79 | -28.24 | 58.22 | -17.18 | 153.83 | 0.5923 | -782.0 | -663.7 | |
| 0.00 | 1.81 | 0.00 | 1.11 | -27.82 | 58.00 | -17.40 | 153.20 | 0.5886 | -722.0 | -536.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
