SDO HMI 2014-11-05 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.35 | 260.35 | 31.99 | 133.54 | -4.98 | 86.50 | 11.66 | 231.76 | 0.2573 | -11.1 | 73.8 | |
|
previous
or next observation for the same group /

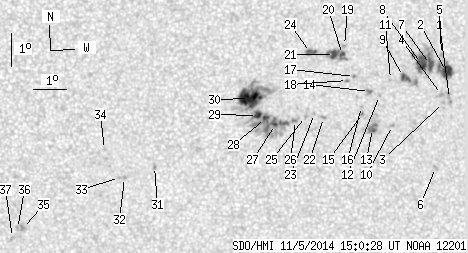

back to the solar disc SDO HMI 2014-11-05 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.80 | 0.00 | 1.98 | -5.17 | 90.57 | 15.72 | 240.05 | 0.3128 | 809.0 | 733.6 | |
| 9.15 | 57.85 | 4.76 | 29.99 | -4.36 | 90.46 | 15.61 | 242.20 | 0.3047 | 982.5 | 746.5 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -5.29 | 90.39 | 15.54 | 239.44 | 0.3112 | 868.0 | 686.6 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -5.04 | 90.32 | 15.47 | 240.00 | 0.3082 | 1066.0 | 844.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -3.84 | 90.29 | 15.44 | 243.47 | 0.2983 | 697.0 | 518.7 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -7.24 | 90.19 | 15.35 | 233.93 | 0.3262 | 686.0 | 599.0 | |
| 4.32 | -2.00 | 2.24 | -2.00 | -4.14 | 89.96 | 15.11 | 242.08 | 0.2956 | 1051.8 | 999999 | |
| 10.19 | -2.00 | 5.27 | -2.00 | -4.10 | 89.68 | 14.83 | 241.74 | 0.2912 | 1214.3 | 999999 | |
| 1.30 | 9.58 | 0.67 | 4.96 | -4.48 | 89.13 | 14.29 | 239.65 | 0.2863 | 1137.0 | 906.8 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -5.95 | 88.83 | 13.98 | 234.81 | 0.2953 | 856.0 | 647.3 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -4.56 | 88.74 | 13.89 | 238.68 | 0.2813 | 645.0 | 564.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -5.04 | 88.41 | 13.56 | 236.62 | 0.2809 | 933.0 | 673.8 | |
| 0.00 | 7.51 | 0.00 | 3.88 | -6.03 | 88.21 | 13.37 | 233.36 | 0.2878 | 956.0 | 846.2 | |
| 0.00 | 2.94 | 0.00 | 1.51 | -4.91 | 88.10 | 13.25 | 236.39 | 0.2754 | 1159.0 | 910.4 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -5.57 | 87.90 | 13.05 | 234.02 | 0.2790 | 1167.0 | 1033.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -5.36 | 87.86 | 13.01 | 234.56 | 0.2764 | 784.0 | 606.7 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -4.45 | 87.63 | 12.78 | 236.87 | 0.2646 | -838.0 | -703.3 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -4.57 | 87.42 | 12.57 | 236.05 | 0.2627 | -859.0 | -657.9 | |
| 0.00 | 1.73 | 0.00 | 0.88 | -3.52 | 87.31 | 12.46 | 239.30 | 0.2517 | 865.0 | 728.8 | |
| 1.47 | 17.36 | 0.75 | 8.88 | -3.79 | 87.25 | 12.41 | 238.27 | 0.2532 | 1033.4 | 866.2 | |
| 4.14 | -20.00 | 2.12 | -20.00 | -3.78 | 87.01 | 12.16 | 237.77 | 0.2497 | 1240.3 | 999999 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -5.67 | 86.71 | 11.86 | 231.06 | 0.2641 | -885.0 | -724.2 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -5.55 | 86.43 | 11.58 | 230.77 | 0.2591 | -732.0 | -534.1 | |
| 0.00 | 5.35 | 0.00 | 2.73 | -3.71 | 86.28 | 11.43 | 236.38 | 0.2386 | 1202.0 | 968.4 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -5.63 | 86.16 | 11.31 | 229.84 | 0.2565 | -886.0 | -675.9 | |
| 0.00 | 3.02 | 0.00 | 1.55 | -5.75 | 85.85 | 11.01 | 228.72 | 0.2539 | -805.0 | -722.1 | |
| 1.47 | 118.82 | 0.75 | 60.56 | -5.86 | 85.25 | 10.40 | 226.77 | 0.2476 | -1120.2 | -476.5 | |
| 1.81 | -27.00 | 0.93 | -27.00 | -5.68 | 84.94 | 10.09 | 226.47 | 0.2417 | -1177.9 | 999999 | |
| 3.80 | -27.00 | 1.94 | -27.00 | -5.58 | 84.70 | 9.85 | 226.05 | 0.2376 | -1168.2 | 999999 | |
| 24.70 | -27.00 | 12.56 | -27.00 | -5.07 | 84.45 | 9.60 | 226.93 | 0.2285 | -1240.5 | 999999 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -7.09 | 81.61 | 6.76 | 211.52 | 0.2245 | -911.0 | -778.5 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -7.41 | 80.71 | 5.86 | 207.30 | 0.2218 | -894.0 | -654.2 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -7.41 | 80.56 | 5.71 | 206.70 | 0.2206 | -902.0 | -697.5 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -6.56 | 80.10 | 5.25 | 206.59 | 0.2041 | -721.0 | -562.9 | |
| 0.00 | 3.11 | 0.00 | 1.58 | -8.94 | 77.65 | 2.81 | 192.26 | 0.2288 | -1077.0 | -824.8 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -8.94 | 77.50 | 2.65 | 191.62 | 0.2283 | -812.0 | -660.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -9.22 | 77.35 | 2.51 | 190.75 | 0.2323 | -843.0 | -618.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
