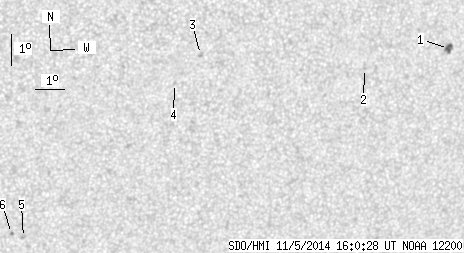

SDO HMI 2014-11-05 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.28 | 14.17 | 2.01 | 8.39 | -18.36 | 98.52 | 24.22 | 225.55 | 0.5476 | -45.0 | -135.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.28 | 5.96 | 2.01 | 3.65 | -16.96 | 104.16 | 29.86 | 233.86 | 0.5919 | 874.4 | 685.2 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -17.50 | 101.27 | 26.97 | 230.38 | 0.5637 | 701.0 | 562.3 | |
| 0.00 | 2.33 | 0.00 | 1.33 | -16.88 | 95.59 | 21.29 | 224.74 | 0.4956 | -626.0 | -603.6 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -17.78 | 94.83 | 20.53 | 222.40 | 0.4972 | -606.0 | -436.6 | |
| 0.00 | 1.99 | 0.00 | 1.15 | -22.69 | 90.38 | 16.08 | 209.84 | 0.5156 | -722.0 | -612.9 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -22.55 | 89.96 | 15.66 | 209.35 | 0.5107 | -820.0 | -736.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
