SDO HMI 2014-11-05 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.89 | 249.46 | 34.90 | 128.35 | -5.06 | 86.84 | 12.54 | 233.68 | 0.2695 | -17.9 | 134.5 | |
|
previous
or next observation for the same group /

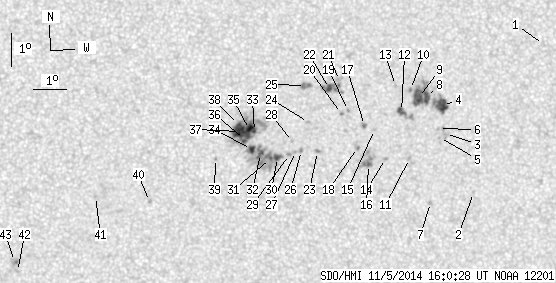

back to the solar disc SDO HMI 2014-11-05 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.91 | -2.61 | 93.65 | 19.35 | 251.63 | 0.3503 | 0.0 | -7.4 | |
| 0.00 | 1.47 | 0.00 | 0.78 | -7.01 | 91.57 | 17.27 | 237.65 | 0.3503 | 11.0 | 5.8 | |
| 0.00 | 5.61 | 0.00 | 2.93 | -5.21 | 90.64 | 16.34 | 240.89 | 0.3221 | 704.0 | 657.1 | |
| 9.50 | 19.77 | 4.95 | 10.31 | -4.37 | 90.52 | 16.23 | 243.08 | 0.3139 | 967.8 | 752.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -5.33 | 90.45 | 16.15 | 240.29 | 0.3204 | 891.0 | 645.5 | |
| 0.00 | 1.30 | 0.00 | 0.68 | -5.06 | 90.41 | 16.12 | 240.98 | 0.3176 | 975.0 | 795.7 | |
| 0.00 | 2.07 | 0.00 | 1.09 | -7.29 | 90.23 | 15.93 | 234.85 | 0.3345 | 812.0 | 626.5 | |
| 4.66 | 28.06 | 2.42 | 14.57 | -4.12 | 90.02 | 15.72 | 243.07 | 0.3045 | 1046.1 | 808.6 | |
| 10.02 | -8.00 | 5.20 | -8.00 | -4.11 | 89.77 | 15.48 | 242.71 | 0.3008 | 1196.1 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -3.87 | 89.52 | 15.22 | 243.06 | 0.2952 | 1095.0 | 968.4 | |
| 0.00 | 1.99 | 0.00 | 1.04 | -5.94 | 89.54 | 15.24 | 237.13 | 0.3127 | 957.0 | 739.1 | |
| 2.94 | 9.93 | 1.52 | 5.15 | -4.52 | 89.26 | 14.96 | 240.68 | 0.2965 | 1172.2 | 818.9 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -3.74 | 89.06 | 14.76 | 242.73 | 0.2873 | 852.0 | 605.6 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -5.93 | 88.80 | 14.50 | 235.85 | 0.3022 | 843.0 | 682.6 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -5.05 | 88.44 | 14.14 | 237.69 | 0.2892 | 920.0 | 699.2 | |
| 1.04 | 14.25 | 0.54 | 7.38 | -6.10 | 88.28 | 13.98 | 234.39 | 0.2968 | 868.5 | 825.0 | |
| 0.00 | 2.33 | 0.00 | 1.20 | -4.92 | 88.13 | 13.83 | 237.49 | 0.2837 | 1147.0 | 962.7 | |
| 0.00 | 1.99 | 0.00 | 1.03 | -5.58 | 87.93 | 13.63 | 235.17 | 0.2870 | 1117.0 | 1008.8 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -4.46 | 87.63 | 13.33 | 237.93 | 0.2725 | -847.0 | -655.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -4.55 | 87.41 | 13.12 | 237.24 | 0.2702 | -848.0 | -712.0 | |
| 0.00 | 4.14 | 0.00 | 2.13 | -3.56 | 87.34 | 13.04 | 240.30 | 0.2604 | 711.0 | 526.1 | |
| 2.94 | 15.37 | 1.50 | 7.88 | -3.79 | 87.04 | 12.74 | 238.93 | 0.2580 | 1267.1 | 840.8 | |
| 0.00 | 1.99 | 0.00 | 1.02 | -5.68 | 86.70 | 12.40 | 232.30 | 0.2714 | -961.0 | -794.2 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -4.80 | 86.41 | 12.11 | 234.31 | 0.2586 | 750.0 | 480.3 | |
| 0.00 | 5.96 | 0.00 | 3.04 | -3.69 | 86.30 | 12.00 | 237.74 | 0.2466 | 1136.0 | 941.3 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -5.64 | 86.21 | 11.91 | 231.28 | 0.2645 | -831.0 | -713.5 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -5.67 | 86.03 | 11.73 | 230.77 | 0.2624 | -827.0 | -666.7 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -5.37 | 85.93 | 11.63 | 231.45 | 0.2579 | -833.0 | -593.1 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -5.76 | 85.85 | 11.55 | 230.07 | 0.2610 | -863.0 | -788.7 | |
| 2.59 | 52.41 | 1.33 | 26.82 | -5.84 | 85.48 | 11.19 | 228.91 | 0.2572 | -955.8 | -536.5 | |
| 0.78 | -30.00 | 0.40 | -30.00 | -5.87 | 85.27 | 10.97 | 228.28 | 0.2549 | -1136.1 | 999999 | |
| 3.45 | -30.00 | 1.77 | -30.00 | -5.72 | 84.96 | 10.67 | 227.93 | 0.2492 | -1115.8 | 999999 | |
| 1.21 | 55.00 | 0.62 | 28.02 | -5.05 | 84.77 | 10.47 | 229.47 | 0.2393 | -1074.0 | -440.7 | |
| 3.54 | -30.00 | 1.81 | -30.00 | -5.59 | 84.69 | 10.39 | 227.56 | 0.2444 | -1146.6 | 999999 | |
| 8.29 | -33.00 | 4.22 | -33.00 | -4.99 | 84.62 | 10.32 | 229.26 | 0.2367 | -1051.4 | 999999 | |
| 3.11 | -33.00 | 1.58 | -33.00 | -5.29 | 84.47 | 10.17 | 227.90 | 0.2382 | -1149.1 | 999999 | |
| 12.09 | -33.00 | 6.16 | -33.00 | -5.04 | 84.32 | 10.02 | 228.23 | 0.2334 | -1304.3 | 999999 | |
| 1.73 | -33.00 | 0.88 | -33.00 | -4.83 | 84.28 | 9.99 | 228.82 | 0.2306 | -1058.9 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -5.85 | 83.60 | 9.31 | 223.62 | 0.2342 | 701.0 | 556.7 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -7.12 | 81.63 | 7.33 | 213.53 | 0.2302 | -882.0 | -705.2 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -6.96 | 80.00 | 5.70 | 207.63 | 0.2136 | -887.0 | -699.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -9.22 | 77.67 | 3.38 | 194.35 | 0.2356 | -868.0 | -620.4 | |
| 0.00 | 3.71 | 0.00 | 1.89 | -8.92 | 77.58 | 3.28 | 194.29 | 0.2302 | -1013.0 | -839.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
