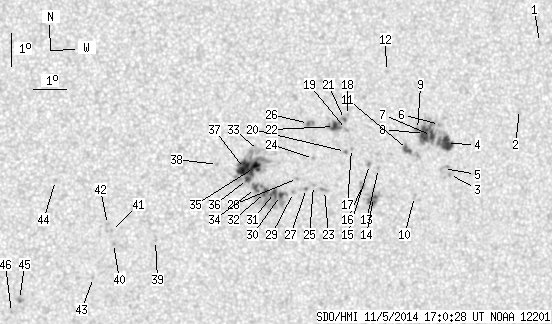

SDO HMI 2014-11-05 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.97 | 255.49 | 34.01 | 131.66 | -5.00 | 86.69 | 12.95 | 234.64 | 0.2747 | 0.7 | 66.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.64 | 1.73 | 0.87 | 0.91 | -1.42 | 93.40 | 19.65 | 255.15 | 0.3494 | -3.6 | -1.0 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -3.41 | 92.79 | 19.05 | 249.18 | 0.3501 | 623.0 | 612.7 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -5.31 | 90.65 | 16.90 | 241.44 | 0.3310 | 914.0 | 772.4 | |
| 9.76 | 55.08 | 5.10 | 28.73 | -4.38 | 90.53 | 16.78 | 243.84 | 0.3222 | 938.6 | 705.2 | |
| 0.00 | 4.32 | 0.00 | 2.26 | -5.13 | 90.45 | 16.71 | 241.66 | 0.3268 | 997.0 | 688.6 | |
| 0.00 | 1.90 | 0.00 | 0.99 | -3.81 | 90.30 | 16.55 | 245.16 | 0.3147 | 691.0 | 465.3 | |
| 3.28 | -4.00 | 1.71 | -4.00 | -4.13 | 90.06 | 16.31 | 243.89 | 0.3134 | 1091.5 | 999999 | |
| 9.07 | -4.00 | 4.72 | -4.00 | -4.07 | 89.84 | 16.09 | 243.77 | 0.3096 | 1212.1 | 999999 | |
| 0.43 | -4.00 | 0.22 | -4.00 | -3.94 | 89.62 | 15.87 | 243.82 | 0.3054 | 1115.4 | 999999 | |
| 0.00 | 2.16 | 0.00 | 1.13 | -5.95 | 89.57 | 15.83 | 238.09 | 0.3210 | 809.0 | 637.9 | |
| 2.50 | 9.58 | 1.30 | 4.99 | -4.54 | 89.32 | 15.58 | 241.63 | 0.3056 | 1167.3 | 848.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -2.19 | 88.64 | 14.89 | 247.94 | 0.2784 | 742.0 | 608.9 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -5.09 | 88.44 | 14.69 | 238.57 | 0.2974 | 1000.0 | 746.4 | |
| 1.64 | 13.30 | 0.85 | 6.91 | -5.96 | 88.30 | 14.56 | 235.88 | 0.3034 | 1034.3 | 783.9 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -4.96 | 88.16 | 14.41 | 238.45 | 0.2923 | 1123.0 | 917.2 | |
| 0.00 | 3.71 | 0.00 | 1.92 | -5.59 | 87.96 | 14.21 | 236.26 | 0.2951 | 1109.0 | 901.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -4.47 | 87.59 | 13.85 | 238.90 | 0.2800 | -760.0 | -653.2 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -3.48 | 87.46 | 13.71 | 241.80 | 0.2697 | 498.0 | 344.4 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -3.90 | 87.43 | 13.69 | 240.40 | 0.2727 | 961.0 | 783.5 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -4.56 | 87.41 | 13.67 | 238.29 | 0.2781 | -790.0 | -700.6 | |
| 0.52 | 12.26 | 0.27 | 6.30 | -3.60 | 87.37 | 13.62 | 241.25 | 0.2693 | 964.2 | 877.9 | |
| 3.45 | -21.00 | 1.77 | -21.00 | -3.80 | 87.06 | 13.32 | 240.03 | 0.2665 | 1142.5 | 999999 | |
| 0.00 | 3.11 | 0.00 | 1.60 | -5.72 | 86.79 | 13.05 | 233.58 | 0.2804 | -836.0 | -659.1 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -4.75 | 86.44 | 12.69 | 235.74 | 0.2661 | 862.0 | 594.6 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -5.57 | 86.45 | 12.71 | 233.31 | 0.2742 | -665.0 | -531.2 | |
| 0.69 | 4.40 | 0.35 | 2.25 | -3.70 | 86.27 | 12.52 | 238.81 | 0.2541 | 1164.2 | 936.7 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -5.65 | 86.24 | 12.49 | 232.59 | 0.2723 | -831.0 | -719.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -5.35 | 85.96 | 12.21 | 232.87 | 0.2654 | -782.0 | -635.6 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -5.77 | 85.84 | 12.10 | 231.36 | 0.2682 | -885.0 | -787.7 | |
| 1.73 | 49.99 | 0.89 | 25.63 | -5.85 | 85.45 | 11.70 | 230.17 | 0.2640 | -951.3 | -525.7 | |
| 1.21 | -30.00 | 0.62 | -30.00 | -5.76 | 85.26 | 11.52 | 230.00 | 0.2606 | -1148.2 | 999999 | |
| 2.68 | -30.00 | 1.37 | -30.00 | -5.75 | 84.99 | 11.24 | 229.33 | 0.2570 | -1089.9 | 999999 | |
| 0.00 | 3.54 | 0.00 | 1.81 | -4.49 | 84.76 | 11.01 | 232.72 | 0.2404 | -135.0 | -187.5 | |
| 2.42 | -30.00 | 1.24 | -30.00 | -5.63 | 84.68 | 10.94 | 228.92 | 0.2517 | -1153.4 | 999999 | |
| 9.93 | 59.83 | 5.07 | 30.54 | -5.00 | 84.64 | 10.90 | 230.77 | 0.2442 | -1095.1 | -459.8 | |
| 2.33 | -35.00 | 1.19 | -35.00 | -5.35 | 84.44 | 10.69 | 229.10 | 0.2455 | -1071.5 | 999999 | |
| 12.69 | -35.00 | 6.47 | -35.00 | -5.02 | 84.34 | 10.59 | 229.89 | 0.2405 | -1243.6 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -4.89 | 83.52 | 9.77 | 228.02 | 0.2286 | 843.0 | 608.8 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -7.16 | 81.68 | 7.93 | 215.57 | 0.2365 | -878.0 | -663.9 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -7.24 | 80.41 | 6.67 | 210.82 | 0.2258 | -884.0 | -788.9 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -6.84 | 80.35 | 6.60 | 211.49 | 0.2195 | -915.0 | -746.0 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -6.66 | 80.22 | 6.48 | 211.46 | 0.2158 | -900.0 | -745.4 | |
| 0.00 | 0.43 | 0.00 | 0.22 | -8.26 | 79.82 | 6.08 | 206.45 | 0.2364 | -857.0 | -721.6 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -5.32 | 78.65 | 4.91 | 207.97 | 0.1824 | -718.0 | -470.5 | |
| 0.00 | 3.19 | 0.00 | 1.63 | -8.92 | 77.60 | 3.85 | 196.65 | 0.2328 | -1083.0 | -884.6 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -9.31 | 77.36 | 3.62 | 195.22 | 0.2382 | -797.0 | -610.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
