SDO HMI 2014-11-05 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 14.15 | 0.25 | 7.93 | -22.29 | 76.25 | 2.50 | 186.96 | 0.4612 | 420.1 | 304.3 | |
|
previous
or next observation for the same group /

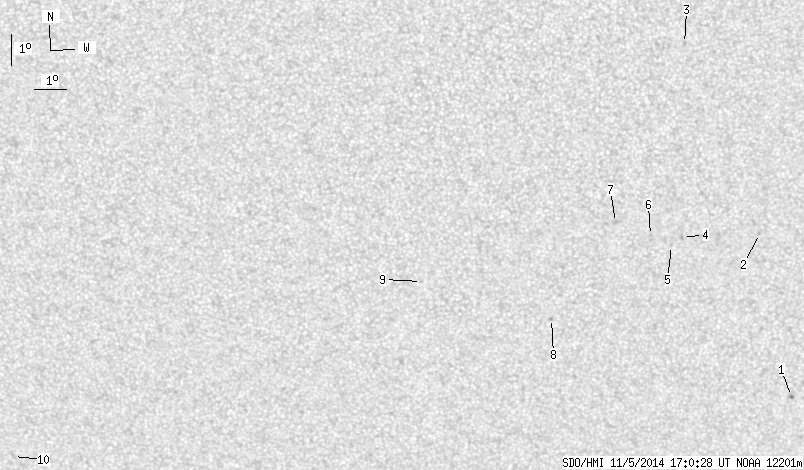

back to the solar disc SDO HMI 2014-11-05 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.43 | 1.55 | 0.25 | 0.91 | -26.24 | 84.59 | 10.85 | 198.61 | 0.5311 | -865.6 | -773.5 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -20.76 | 83.12 | 9.37 | 200.08 | 0.4455 | 738.0 | 613.0 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -14.65 | 80.48 | 6.74 | 199.64 | 0.3392 | 715.0 | 627.6 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -20.86 | 80.65 | 6.91 | 195.02 | 0.4354 | 890.0 | 705.4 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -21.12 | 80.31 | 6.56 | 194.15 | 0.4379 | 708.0 | 574.7 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -20.79 | 79.62 | 5.88 | 192.91 | 0.4303 | 780.0 | 542.6 | |
| 0.00 | 2.07 | 0.00 | 1.13 | -20.35 | 78.49 | 4.75 | 190.70 | 0.4199 | 814.0 | 619.6 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -23.52 | 76.52 | 2.77 | 185.50 | 0.4647 | 801.0 | 717.9 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -22.27 | 72.32 | -1.43 | 177.01 | 0.4438 | 717.0 | 508.4 | |
| 0.00 | 2.07 | 0.00 | 1.26 | -28.37 | 58.27 | -15.48 | 156.19 | 0.5838 | -775.0 | -573.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
