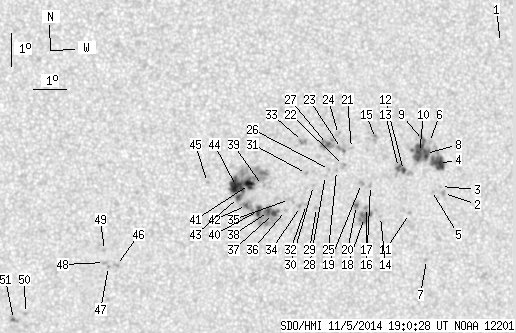

SDO HMI 2014-11-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.35 | 261.41 | 33.91 | 135.35 | -5.02 | 86.71 | 14.07 | 236.92 | 0.2901 | 72.4 | 54.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 0.82 | -0.86 | 92.48 | 19.84 | 256.85 | 0.3500 | -14.0 | 1.1 | |
| 0.00 | 2.33 | 0.00 | 1.23 | -5.34 | 90.76 | 18.12 | 243.04 | 0.3490 | 861.0 | 699.6 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -5.13 | 90.66 | 18.02 | 243.46 | 0.3460 | 882.0 | 740.6 | |
| 10.96 | 48.95 | 5.77 | 25.70 | -4.44 | 90.58 | 17.94 | 245.19 | 0.3399 | 954.5 | 694.9 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -5.25 | 90.38 | 17.74 | 242.80 | 0.3427 | 190.0 | 356.2 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -3.80 | 90.29 | 17.65 | 246.57 | 0.3311 | 249.0 | 253.1 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -7.33 | 90.30 | 17.66 | 237.49 | 0.3583 | 788.0 | 561.7 | |
| 5.01 | -4.00 | 2.63 | -4.00 | -4.13 | 90.17 | 17.53 | 245.52 | 0.3315 | 1067.6 | 999999 | |
| 1.04 | -4.00 | 0.54 | -4.00 | -3.74 | 90.10 | 17.46 | 246.52 | 0.3278 | 859.4 | 999999 | |
| 10.71 | -4.00 | 5.61 | -4.00 | -4.10 | 89.98 | 17.34 | 245.37 | 0.3285 | 1171.8 | 999999 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -5.92 | 89.72 | 17.07 | 240.11 | 0.3384 | 897.0 | 739.4 | |
| 1.47 | 11.91 | 0.77 | 6.24 | -4.62 | 89.49 | 16.85 | 243.26 | 0.3250 | 1083.6 | 644.5 | |
| 1.64 | -12.00 | 0.86 | -12.00 | -4.53 | 89.34 | 16.69 | 243.30 | 0.3220 | 1061.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -5.99 | 88.81 | 16.17 | 238.55 | 0.3262 | 730.0 | 563.5 | |
| 0.00 | 3.28 | 0.00 | 1.71 | -3.65 | 88.60 | 15.96 | 244.83 | 0.3046 | 858.0 | 824.7 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -5.05 | 88.48 | 15.84 | 240.57 | 0.3135 | 945.0 | 713.3 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -5.71 | 88.37 | 15.73 | 238.59 | 0.3175 | 1009.0 | 870.6 | |
| 0.00 | 12.17 | 0.00 | 6.36 | -6.01 | 88.32 | 15.68 | 237.69 | 0.3194 | 952.0 | 835.9 | |
| 0.00 | 2.42 | 0.00 | 1.26 | -4.99 | 88.20 | 15.56 | 240.31 | 0.3089 | 984.0 | 821.2 | |
| 0.86 | 3.19 | 0.45 | 1.66 | -5.65 | 88.06 | 15.42 | 238.25 | 0.3125 | 1169.5 | 876.4 | |
| 0.00 | 1.99 | 0.00 | 1.03 | -3.93 | 87.87 | 15.23 | 242.89 | 0.2957 | 190.0 | 102.2 | |
| 0.00 | 2.68 | 0.00 | 1.39 | -4.44 | 87.63 | 14.99 | 240.99 | 0.2962 | -731.0 | -660.0 | |
| 0.00 | 4.75 | 0.00 | 2.46 | -3.93 | 87.56 | 14.92 | 242.42 | 0.2910 | 137.0 | 115.2 | |
| 0.00 | 2.42 | 0.00 | 1.25 | -3.50 | 87.46 | 14.82 | 243.57 | 0.2864 | 736.0 | 711.4 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -4.58 | 87.42 | 14.78 | 240.21 | 0.2943 | -873.0 | -655.1 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -4.55 | 87.20 | 14.56 | 239.94 | 0.2908 | 740.0 | 566.3 | |
| 1.81 | 10.88 | 0.94 | 5.62 | -3.80 | 87.12 | 14.48 | 242.11 | 0.2836 | 1231.6 | 885.3 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -4.73 | 87.08 | 14.44 | 239.20 | 0.2906 | 620.0 | 590.8 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -5.68 | 86.82 | 14.18 | 235.96 | 0.2956 | -894.0 | -706.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -5.02 | 86.72 | 14.08 | 237.68 | 0.2880 | 773.0 | 563.6 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -4.66 | 86.49 | 13.85 | 238.36 | 0.2816 | 842.0 | 636.7 | |
| 0.00 | 1.47 | 0.00 | 0.76 | -5.59 | 86.51 | 13.87 | 235.64 | 0.2904 | -620.0 | -471.7 | |
| 0.00 | 3.80 | 0.00 | 1.95 | -3.69 | 86.36 | 13.71 | 241.12 | 0.2714 | 1038.0 | 916.5 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -5.65 | 86.33 | 13.69 | 235.12 | 0.2884 | -776.0 | -582.6 | |
| 0.00 | 4.58 | 0.00 | 2.36 | -5.43 | 85.99 | 13.35 | 235.06 | 0.2816 | -711.0 | -575.2 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -5.76 | 85.87 | 13.23 | 233.87 | 0.2832 | -826.0 | -692.8 | |
| 2.07 | 44.03 | 1.07 | 22.67 | -5.84 | 85.51 | 12.87 | 232.86 | 0.2792 | -907.7 | -581.0 | |
| 2.76 | -37.00 | 1.42 | -37.00 | -5.78 | 85.35 | 12.71 | 232.70 | 0.2765 | -1130.9 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -4.99 | 85.15 | 12.51 | 234.62 | 0.2659 | -207.0 | -288.5 | |
| 3.80 | -37.00 | 1.95 | -37.00 | -5.74 | 85.05 | 12.41 | 232.13 | 0.2720 | -1071.3 | 999999 | |
| 6.04 | 68.63 | 3.10 | 35.18 | -4.96 | 84.76 | 12.12 | 233.85 | 0.2601 | -1072.9 | -351.3 | |
| 1.21 | -37.00 | 0.62 | -37.00 | -5.59 | 84.68 | 12.04 | 231.75 | 0.2655 | -1164.0 | 999999 | |
| 2.33 | -41.00 | 1.20 | -41.00 | -5.34 | 84.43 | 11.79 | 231.90 | 0.2596 | -1042.4 | 999999 | |
| 13.12 | -41.00 | 6.72 | -41.00 | -5.01 | 84.36 | 11.72 | 232.77 | 0.2553 | -1266.2 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -4.88 | 83.48 | 10.84 | 231.00 | 0.2421 | 759.0 | 588.5 | |
| 0.00 | 2.33 | 0.00 | 1.19 | -7.35 | 80.76 | 8.12 | 215.74 | 0.2409 | -796.0 | -642.1 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -7.37 | 80.52 | 7.88 | 214.86 | 0.2389 | -849.0 | -727.4 | |
| 0.00 | 1.90 | 0.00 | 0.97 | -7.25 | 80.40 | 7.76 | 214.73 | 0.2360 | -991.0 | -768.9 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -6.89 | 80.39 | 7.75 | 215.62 | 0.2309 | -848.0 | -704.8 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -8.78 | 78.03 | 5.39 | 202.94 | 0.2394 | -976.0 | -760.2 | |
| 0.52 | 3.02 | 0.26 | 1.54 | -8.96 | 77.67 | 5.03 | 201.27 | 0.2399 | -1123.2 | -843.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
