SDO HMI 2014-11-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.33 | 0.00 | 4.95 | -13.90 | 62.15 | -10.49 | 149.43 | 0.3613 | 241.7 | 250.5 | |
|
previous
or next observation for the same group /

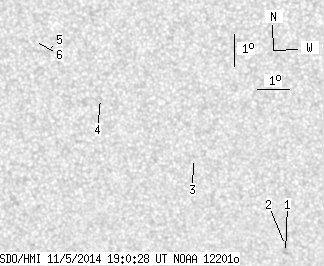

back to the solar disc SDO HMI 2014-11-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.16 | 0.00 | 1.15 | -17.10 | 65.78 | -6.86 | 162.32 | 0.3776 | 699.0 | 614.2 | |
| 0.00 | 1.90 | 0.00 | 1.01 | -16.88 | 65.79 | -6.85 | 162.15 | 0.3741 | 772.0 | 530.1 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -14.16 | 63.03 | -9.61 | 152.39 | 0.3507 | -14.0 | -6.2 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -12.33 | 60.23 | -12.41 | 142.96 | 0.3501 | -2.0 | 1.1 | |
| 0.00 | 3.37 | 0.00 | 1.78 | -10.94 | 58.61 | -14.03 | 136.91 | 0.3498 | 1.0 | -2.4 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -10.61 | 58.26 | -14.38 | 135.52 | 0.3500 | -6.0 | -5.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
