SDO HMI 2014-11-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 125.28 | 623.12 | 136.89 | 677.31 | 15.59 | 9.62 | -63.02 | 74.46 | 0.8908 | 44.5 | 185.9 | |
|
previous
or next observation for the same group /

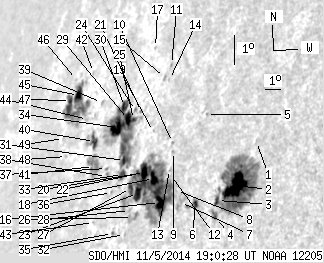

back to the solar disc SDO HMI 2014-11-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 1.10 | 16.55 | 16.09 | -56.55 | 72.76 | 0.8396 | -169.0 | -168.1 | |
| 30.22 | 160.67 | 27.70 | 146.94 | 15.17 | 15.49 | -57.15 | 74.47 | 0.8437 | -815.0 | -328.4 | |
| 2.59 | -2.00 | 2.43 | -2.00 | 14.67 | 14.67 | -57.98 | 75.14 | 0.8507 | -220.7 | 999999 | |
| 0.78 | 4.49 | 0.73 | 4.20 | 14.15 | 14.76 | -57.88 | 75.74 | 0.8495 | -485.3 | -405.1 | |
| 0.00 | 0.69 | 0.00 | 0.69 | 17.20 | 12.80 | -59.84 | 72.38 | 0.8686 | -433.0 | -367.8 | |
| 2.85 | 7.60 | 2.76 | 7.38 | 14.51 | 13.43 | -59.21 | 75.44 | 0.8614 | -486.1 | -267.1 | |
| 0.00 | 7.25 | 0.00 | 7.21 | 14.48 | 12.52 | -60.12 | 75.53 | 0.8691 | 161.0 | 179.0 | |
| 0.00 | 0.26 | 0.00 | 0.26 | 14.83 | 12.11 | -60.53 | 75.17 | 0.8726 | 351.0 | 406.3 | |
| 0.00 | 1.29 | 0.00 | 1.34 | 15.98 | 11.35 | -61.30 | 73.92 | 0.8795 | 601.0 | 574.4 | |
| 0.00 | 0.95 | 0.00 | 0.99 | 16.24 | 11.14 | -61.50 | 73.63 | 0.8813 | 702.0 | 620.5 | |
| 0.00 | 1.04 | 0.00 | 1.14 | 18.57 | 9.68 | -62.96 | 71.14 | 0.8941 | 462.0 | 452.8 | |
| 0.00 | 0.60 | 0.00 | 0.62 | 15.28 | 11.51 | -61.13 | 74.70 | 0.8778 | 548.0 | 420.6 | |
| 0.00 | 0.86 | 0.00 | 0.89 | 15.43 | 11.37 | -61.27 | 74.54 | 0.8790 | 579.0 | 564.9 | |
| 0.00 | 0.69 | 0.00 | 0.75 | 18.12 | 9.84 | -62.80 | 71.64 | 0.8926 | 536.0 | 565.9 | |
| 0.00 | 2.07 | 0.00 | 2.28 | 18.16 | 9.46 | -63.18 | 71.63 | 0.8954 | 554.0 | 516.0 | |
| 8.81 | 187.69 | 9.10 | 199.18 | 14.41 | 11.22 | -61.42 | 75.71 | 0.8796 | -184.0 | 367.3 | |
| 0.00 | 0.78 | 0.00 | 0.90 | 19.02 | 8.23 | -64.41 | 70.78 | 0.9048 | 465.0 | 419.7 | |
| 7.77 | -16.00 | 8.23 | -16.00 | 15.10 | 10.49 | -62.15 | 74.98 | 0.8858 | 979.0 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.66 | 16.50 | 9.72 | -62.92 | 73.46 | 0.8924 | 622.0 | 554.7 | |
| 6.73 | -16.00 | 7.30 | -16.00 | 15.24 | 9.81 | -62.83 | 74.86 | 0.8912 | 848.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.08 | 17.05 | 8.55 | -64.10 | 72.94 | 0.9014 | 425.0 | 431.2 | |
| 2.68 | -16.00 | 2.93 | -16.00 | 15.19 | 9.42 | -63.22 | 74.94 | 0.8940 | 749.0 | 999999 | |
| 7.86 | -16.00 | 8.53 | -16.00 | 14.59 | 9.67 | -62.97 | 75.60 | 0.8919 | -354.8 | 999999 | |
| 0.00 | 1.81 | 0.00 | 2.09 | 17.05 | 8.11 | -64.53 | 72.96 | 0.9046 | 436.0 | 338.5 | |
| 0.26 | 125.01 | 0.30 | 146.16 | 16.78 | 8.14 | -64.50 | 73.27 | 0.9042 | 714.3 | 320.0 | |
| 0.00 | 6.99 | 0.00 | 7.58 | 13.86 | 9.69 | -62.95 | 76.42 | 0.8914 | -66.0 | 48.5 | |
| 4.49 | -16.00 | 4.96 | -16.00 | 14.71 | 9.12 | -63.52 | 75.50 | 0.8961 | -221.0 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.42 | 14.06 | 9.39 | -63.25 | 76.22 | 0.8938 | -240.0 | -186.8 | |
| 6.47 | -25.00 | 7.55 | -25.00 | 16.76 | 7.79 | -64.85 | 73.31 | 0.9067 | 775.6 | 999999 | |
| 4.23 | -25.00 | 5.02 | -25.00 | 17.13 | 7.24 | -65.40 | 72.94 | 0.9107 | 423.2 | 999999 | |
| 2.50 | -25.00 | 2.86 | -25.00 | 15.52 | 8.25 | -64.39 | 74.65 | 0.9028 | 52.2 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.23 | 13.33 | 9.40 | -63.24 | 77.03 | 0.8935 | 258.0 | 194.3 | |
| 3.97 | -25.00 | 4.52 | -25.00 | 15.10 | 8.35 | -64.29 | 75.11 | 0.9020 | -371.0 | 999999 | |
| 15.71 | -25.00 | 18.70 | -25.00 | 16.47 | 7.15 | -65.49 | 73.67 | 0.9110 | 57.1 | 999999 | |
| 0.43 | 1.73 | 0.49 | 1.94 | 13.31 | 8.58 | -64.06 | 77.09 | 0.8997 | -284.2 | -218.1 | |
| 0.00 | 1.21 | 0.00 | 1.39 | 14.52 | 7.88 | -64.76 | 75.78 | 0.9052 | 365.0 | 347.5 | |
| 0.00 | 1.29 | 0.00 | 1.54 | 15.21 | 7.11 | -65.53 | 75.06 | 0.9108 | -107.0 | -105.1 | |
| 0.00 | 3.11 | 0.00 | 3.67 | 14.97 | 7.25 | -65.39 | 75.31 | 0.9098 | 191.0 | 196.2 | |
| 0.00 | 0.86 | 0.00 | 1.10 | 17.14 | 5.43 | -67.21 | 73.04 | 0.9227 | 562.0 | 459.9 | |
| 5.53 | 14.59 | 6.94 | 18.46 | 15.95 | 5.71 | -66.93 | 74.31 | 0.9205 | -230.3 | 176.3 | |
| 0.00 | 21.15 | 0.00 | 26.10 | 15.21 | 6.11 | -66.53 | 75.10 | 0.9176 | 547.0 | 309.6 | |
| 0.00 | 0.86 | 0.00 | 1.16 | 17.99 | 4.10 | -68.54 | 72.19 | 0.9314 | 132.0 | 74.6 | |
| 0.00 | 0.69 | 0.00 | 0.82 | 13.55 | 7.07 | -65.57 | 76.88 | 0.9106 | -259.0 | -212.4 | |
| 0.00 | 1.12 | 0.00 | 1.47 | 16.57 | 4.70 | -67.94 | 73.69 | 0.9272 | 349.0 | 313.5 | |
| 8.98 | 58.19 | 12.42 | 80.20 | 17.23 | 3.41 | -69.23 | 73.04 | 0.9352 | 493.2 | 457.0 | |
| 0.00 | 0.86 | 0.00 | 1.23 | 17.69 | 2.84 | -69.80 | 72.57 | 0.9387 | -314.0 | -309.7 | |
| 2.42 | -45.00 | 3.42 | -45.00 | 17.04 | 2.85 | -69.80 | 73.26 | 0.9385 | 287.0 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.29 | 15.37 | 3.79 | -68.86 | 75.02 | 0.9326 | 376.0 | 339.0 | |
| 0.00 | 0.60 | 0.00 | 0.85 | 15.89 | 3.14 | -69.50 | 74.49 | 0.9365 | 462.0 | 482.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
