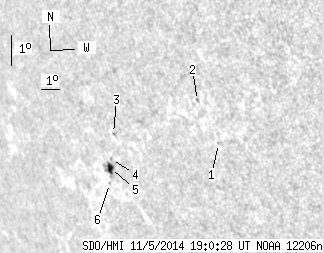

SDO HMI 2014-11-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.66 | 14.92 | 4.56 | 14.33 | -15.74 | 16.59 | -56.05 | 111.07 | 0.8572 | -404.7 | -296.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.58 | -14.93 | 21.98 | -50.66 | 111.79 | 0.8071 | 423.0 | 386.9 | |
| 0.00 | 1.29 | 0.00 | 1.09 | -13.62 | 21.36 | -51.28 | 110.03 | 0.8093 | 537.0 | 408.6 | |
| 0.00 | 1.12 | 0.00 | 1.07 | -14.92 | 16.53 | -56.11 | 110.11 | 0.8563 | -515.0 | -467.3 | |
| 0.00 | 1.12 | 0.00 | 1.09 | -15.76 | 16.06 | -56.58 | 110.93 | 0.8620 | -629.0 | -564.3 | |
| 4.66 | 9.84 | 4.56 | 9.65 | -16.05 | 15.88 | -56.76 | 111.21 | 0.8642 | -717.0 | -416.5 | |
| 0.00 | 0.86 | 0.00 | 0.85 | -16.54 | 15.60 | -57.04 | 111.67 | 0.8676 | -416.0 | -378.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
