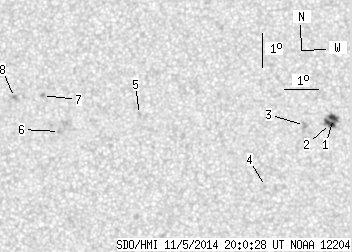

SDO HMI 2014-11-05 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.60 | 25.81 | 3.77 | 12.81 | 5.72 | 72.18 | 0.09 | 234.23 | 0.0673 | -407.5 | -293.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.54 | 13.81 | 1.76 | 6.85 | 5.78 | 74.83 | 2.74 | 304.41 | 0.0580 | -1117.2 | -916.7 | |
| 4.06 | -1.00 | 2.01 | -1.00 | 5.63 | 74.74 | 2.65 | 303.10 | 0.0552 | -1208.1 | 999999 | |
| 0.00 | 3.54 | 0.00 | 1.75 | 5.57 | 73.96 | 1.87 | 311.69 | 0.0438 | -1000.0 | -860.2 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 3.76 | 72.79 | 0.71 | 258.03 | 0.0126 | -752.0 | -513.8 | |
| 0.00 | 1.47 | 0.00 | 0.73 | 5.90 | 69.03 | -3.05 | 56.70 | 0.0637 | -863.0 | -687.8 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 5.39 | 66.64 | -5.44 | 74.59 | 0.0984 | 946.0 | 708.1 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 6.45 | 66.12 | -5.96 | 66.59 | 0.1130 | 1031.0 | 881.0 | |
| 0.00 | 2.85 | 0.00 | 1.42 | 6.39 | 65.28 | -6.81 | 69.64 | 0.1262 | 1051.0 | 827.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
