SDO HMI 2014-11-05 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 124.59 | 643.47 | 132.59 | 685.85 | 15.59 | 9.66 | -62.43 | 74.42 | 0.8863 | 38.0 | 186.3 | |
|
previous
or next observation for the same group /

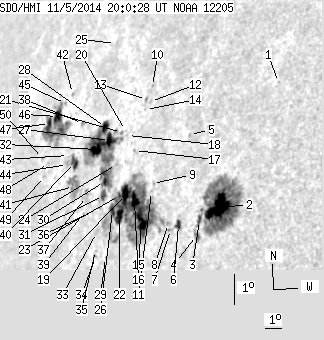

back to the solar disc SDO HMI 2014-11-05 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.61 | 19.09 | 17.07 | -55.01 | 69.52 | 0.8287 | -545.0 | -478.0 | |
| 31.43 | 163.69 | 28.39 | 147.54 | 15.15 | 15.52 | -56.57 | 74.44 | 0.8384 | -847.2 | -337.2 | |
| 2.24 | -2.00 | 2.07 | -2.00 | 14.70 | 14.62 | -57.46 | 75.06 | 0.8461 | -301.8 | 999999 | |
| 0.00 | 5.18 | 0.00 | 4.78 | 14.24 | 14.64 | -57.45 | 75.60 | 0.8457 | -493.0 | -384.5 | |
| 0.00 | 0.78 | 0.00 | 0.76 | 17.24 | 12.85 | -59.24 | 72.27 | 0.8637 | -315.0 | -341.1 | |
| 3.54 | 5.70 | 3.37 | 5.43 | 14.48 | 13.49 | -58.60 | 75.41 | 0.8561 | -473.0 | -249.2 | |
| 0.00 | 1.90 | 0.00 | 1.83 | 14.34 | 13.07 | -59.02 | 75.62 | 0.8596 | -298.0 | -229.1 | |
| 0.00 | 2.07 | 0.00 | 2.01 | 14.51 | 12.88 | -59.21 | 75.43 | 0.8614 | 132.0 | 120.0 | |
| 0.00 | 0.86 | 0.00 | 0.88 | 15.65 | 11.35 | -60.74 | 74.25 | 0.8748 | 517.0 | 473.8 | |
| 0.00 | 0.95 | 0.00 | 1.02 | 18.55 | 9.70 | -62.39 | 71.12 | 0.8898 | 624.0 | 519.9 | |
| 0.00 | 1.12 | 0.00 | 1.14 | 15.40 | 11.41 | -60.68 | 74.52 | 0.8742 | 543.0 | 438.0 | |
| 0.00 | 1.47 | 0.00 | 1.57 | 18.09 | 9.85 | -62.24 | 71.61 | 0.8883 | 534.0 | 419.6 | |
| 0.00 | 1.64 | 0.00 | 1.77 | 18.14 | 9.55 | -62.54 | 71.59 | 0.8906 | 535.0 | 464.2 | |
| 0.00 | 0.26 | 0.00 | 0.28 | 17.83 | 9.67 | -62.42 | 71.92 | 0.8895 | 514.0 | 526.0 | |
| 11.40 | 214.20 | 11.58 | 222.74 | 14.47 | 11.22 | -60.87 | 75.60 | 0.8752 | -26.7 | 319.2 | |
| 6.65 | -15.00 | 6.92 | -15.00 | 15.07 | 10.48 | -61.61 | 74.97 | 0.8815 | 985.5 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.20 | 16.56 | 9.68 | -62.41 | 73.35 | 0.8886 | 623.0 | 578.8 | |
| 0.00 | 0.26 | 0.00 | 0.28 | 16.98 | 8.95 | -63.13 | 72.93 | 0.8944 | 562.0 | 578.3 | |
| 10.53 | -15.00 | 11.21 | -15.00 | 15.22 | 9.81 | -62.28 | 74.85 | 0.8869 | 765.3 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.29 | 17.13 | 8.73 | -63.36 | 72.79 | 0.8961 | 437.0 | 428.7 | |
| 0.00 | 1.47 | 0.00 | 1.63 | 17.05 | 8.49 | -63.59 | 72.90 | 0.8978 | 474.0 | 437.1 | |
| 9.07 | -15.00 | 9.65 | -15.00 | 14.57 | 9.74 | -62.35 | 75.59 | 0.8871 | -304.8 | 999999 | |
| 1.12 | -15.00 | 1.21 | -15.00 | 15.17 | 9.43 | -62.66 | 74.94 | 0.8897 | 750.2 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.33 | 16.08 | 8.72 | -63.36 | 73.96 | 0.8956 | 714.0 | 560.2 | |
| 0.00 | 0.69 | 0.00 | 0.84 | 19.68 | 6.18 | -65.90 | 70.18 | 0.9154 | 248.0 | 231.2 | |
| 4.75 | -15.00 | 5.15 | -15.00 | 14.69 | 9.20 | -62.88 | 75.48 | 0.8913 | -222.5 | 999999 | |
| 7.08 | 127.69 | 8.07 | 146.57 | 16.76 | 7.81 | -64.27 | 73.26 | 0.9026 | 777.5 | 344.5 | |
| 5.61 | -27.00 | 6.53 | -27.00 | 17.13 | 7.28 | -64.80 | 72.89 | 0.9065 | 444.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.74 | 13.27 | 9.42 | -62.67 | 77.07 | 0.8890 | 202.0 | 173.6 | |
| 2.76 | -27.00 | 3.10 | -27.00 | 15.52 | 8.20 | -63.89 | 74.62 | 0.8992 | 7.4 | 999999 | |
| 3.54 | -27.00 | 3.95 | -27.00 | 15.10 | 8.36 | -63.72 | 75.07 | 0.8978 | -337.6 | 999999 | |
| 8.89 | -27.00 | 10.41 | -27.00 | 16.44 | 7.07 | -65.02 | 73.67 | 0.9077 | -143.5 | 999999 | |
| 0.00 | 2.76 | 0.00 | 3.07 | 13.98 | 8.47 | -63.62 | 76.32 | 0.8966 | 248.0 | 268.0 | |
| 0.00 | 1.73 | 0.00 | 1.90 | 13.26 | 8.74 | -63.34 | 77.11 | 0.8942 | -395.0 | -265.0 | |
| 0.00 | 0.43 | 0.00 | 0.48 | 13.44 | 8.66 | -63.43 | 76.91 | 0.8949 | -121.0 | -72.8 | |
| 0.00 | 0.78 | 0.00 | 0.88 | 14.58 | 7.87 | -64.22 | 75.68 | 0.9012 | 354.0 | 370.9 | |
| 0.00 | 6.65 | 0.00 | 7.72 | 15.00 | 7.20 | -64.89 | 75.25 | 0.9062 | 10.0 | 110.2 | |
| 0.00 | 2.16 | 0.00 | 2.67 | 17.15 | 5.52 | -66.57 | 72.99 | 0.9186 | 659.0 | 538.0 | |
| 0.00 | 0.69 | 0.00 | 0.80 | 14.45 | 7.22 | -64.87 | 75.86 | 0.9059 | 472.0 | 459.9 | |
| 5.44 | 8.63 | 6.68 | 10.62 | 15.96 | 5.71 | -66.38 | 74.28 | 0.9169 | -251.8 | 0.7 | |
| 0.00 | 19.08 | 0.00 | 23.06 | 15.24 | 6.08 | -66.00 | 75.04 | 0.9141 | 578.0 | 322.0 | |
| 0.00 | 1.04 | 0.00 | 1.36 | 17.99 | 4.06 | -68.03 | 72.16 | 0.9282 | 124.0 | 126.6 | |
| 0.00 | 0.52 | 0.00 | 0.65 | 16.14 | 5.11 | -66.98 | 74.11 | 0.9209 | 229.0 | 279.2 | |
| 0.00 | 1.99 | 0.00 | 2.48 | 15.87 | 5.22 | -66.87 | 74.40 | 0.9201 | 356.0 | 322.4 | |
| 0.00 | 1.21 | 0.00 | 1.61 | 17.66 | 3.73 | -68.36 | 72.53 | 0.9301 | 423.0 | 397.5 | |
| 7.86 | 58.45 | 10.61 | 78.68 | 17.24 | 3.38 | -68.71 | 73.01 | 0.9321 | 515.6 | 460.8 | |
| 2.68 | -46.00 | 3.69 | -46.00 | 16.99 | 2.88 | -69.21 | 73.29 | 0.9350 | 377.0 | 999999 | |
| 0.00 | 1.12 | 0.00 | 1.49 | 15.80 | 3.70 | -68.39 | 74.53 | 0.9298 | 270.0 | 261.8 | |
| 0.00 | 1.38 | 0.00 | 1.84 | 15.40 | 3.64 | -68.44 | 74.97 | 0.9300 | 468.0 | 398.0 | |
| 0.00 | 0.95 | 0.00 | 1.30 | 15.92 | 3.09 | -68.99 | 74.43 | 0.9335 | 421.0 | 402.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
