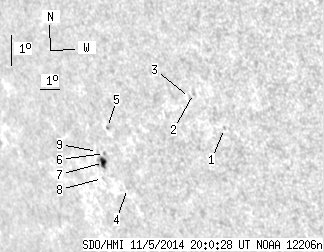

SDO HMI 2014-11-05 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.14 | 16.67 | 4.00 | 15.50 | -15.56 | 17.12 | -54.97 | 111.17 | 0.8472 | -290.6 | -208.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.98 | -14.61 | 22.58 | -49.50 | 111.82 | 0.7949 | 442.0 | 429.9 | |
| 0.00 | 1.21 | 0.00 | 1.00 | -13.59 | 21.41 | -50.68 | 110.18 | 0.8034 | 619.0 | 414.1 | |
| 0.00 | 1.38 | 0.00 | 1.15 | -13.72 | 21.17 | -50.91 | 110.27 | 0.8061 | 454.0 | 325.1 | |
| 0.00 | 0.95 | 0.00 | 0.90 | -16.81 | 16.83 | -55.25 | 112.50 | 0.8535 | -254.0 | -286.2 | |
| 0.00 | 1.30 | 0.00 | 1.22 | -14.92 | 16.53 | -55.56 | 110.26 | 0.8515 | -517.0 | -483.2 | |
| 0.00 | 1.04 | 0.00 | 0.99 | -15.76 | 16.02 | -56.07 | 111.07 | 0.8578 | -545.0 | -539.5 | |
| 4.14 | 7.77 | 4.00 | 7.50 | -16.05 | 15.84 | -56.25 | 111.35 | 0.8600 | -721.7 | -456.5 | |
| 0.00 | 0.60 | 0.00 | 0.59 | -16.57 | 15.55 | -56.54 | 111.85 | 0.8636 | -392.0 | -403.1 | |
| 0.00 | 1.21 | 0.00 | 1.17 | -15.72 | 15.64 | -56.44 | 110.92 | 0.8608 | -408.0 | -334.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
