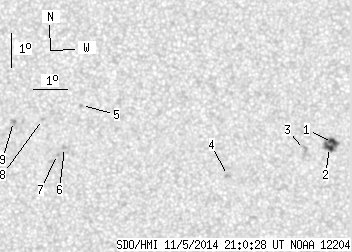

SDO HMI 2014-11-05 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.95 | 29.54 | 3.94 | 14.67 | 5.75 | 72.00 | 0.47 | 235.64 | 0.0701 | -132.5 | -178.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.89 | 15.20 | 1.93 | 7.54 | 5.77 | 74.84 | 3.31 | 299.56 | 0.0663 | -1093.9 | -829.2 | |
| 4.06 | -1.00 | 2.01 | -1.00 | 5.62 | 74.75 | 3.22 | 298.22 | 0.0637 | -1235.8 | 999999 | |
| 0.00 | 3.63 | 0.00 | 1.80 | 5.56 | 74.00 | 2.47 | 304.02 | 0.0520 | -828.0 | -807.7 | |
| 0.00 | 2.16 | 0.00 | 1.07 | 4.80 | 71.70 | 0.17 | 349.27 | 0.0159 | -951.0 | -730.2 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 6.87 | 67.33 | -4.20 | 54.48 | 0.0897 | 937.0 | 647.1 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 5.62 | 66.83 | -4.70 | 69.72 | 0.0873 | 1048.0 | 819.0 | |
| 0.00 | 1.30 | 0.00 | 0.64 | 5.41 | 66.63 | -4.91 | 72.71 | 0.0896 | 920.0 | 767.9 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 6.45 | 66.17 | -5.37 | 64.33 | 0.1036 | 950.0 | 726.2 | |
| 0.00 | 2.76 | 0.00 | 1.38 | 6.39 | 65.30 | -6.24 | 67.99 | 0.1170 | 1069.0 | 842.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
