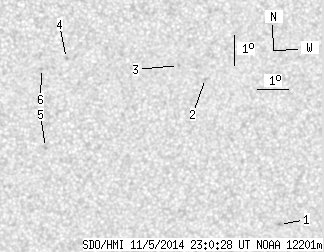

SDO HMI 2014-11-05 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.38 | 0.00 | 4.70 | -22.54 | 79.53 | 9.10 | 197.85 | 0.4711 | 325.2 | 269.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.97 | -26.21 | 84.54 | 14.11 | 203.63 | 0.5478 | -794.0 | -559.1 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -21.26 | 81.59 | 11.16 | 203.04 | 0.4627 | 441.0 | 475.9 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -20.82 | 80.68 | 10.25 | 201.73 | 0.4511 | 798.0 | 605.1 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -20.55 | 77.07 | 6.64 | 194.67 | 0.4293 | 754.0 | 535.1 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -23.49 | 76.52 | 6.09 | 191.95 | 0.4718 | 400.0 | 430.4 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -20.87 | 76.28 | 5.85 | 192.82 | 0.4312 | 352.0 | 411.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
