SDO HMI 2014-11-05 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.64 | 27.72 | 3.30 | 13.78 | 5.84 | 71.06 | 0.63 | 191.71 | 0.0821 | -452.9 | 8.7 | |
|
previous
or next observation for the same group /

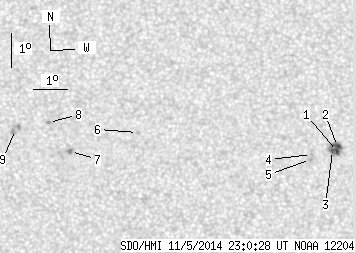

back to the solar disc SDO HMI 2014-11-05 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.07 | 12.95 | 1.03 | 6.44 | 5.60 | 74.90 | 4.47 | 291.10 | 0.0836 | -1249.9 | -862.5 | |
| 3.02 | -1.00 | 1.50 | -1.00 | 5.75 | 74.90 | 4.48 | 292.74 | 0.0846 | -1106.2 | 999999 | |
| 1.55 | -1.00 | 0.77 | -1.00 | 5.64 | 74.75 | 4.32 | 292.10 | 0.0814 | -1248.7 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.64 | 5.52 | 74.12 | 3.70 | 293.89 | 0.0705 | -1092.0 | -868.9 | |
| 0.00 | 1.47 | 0.00 | 0.73 | 5.37 | 74.09 | 3.66 | 292.09 | 0.0690 | -954.0 | -803.9 | |
| 0.00 | 1.38 | 0.00 | 0.69 | 6.19 | 68.93 | -1.50 | 33.11 | 0.0479 | -912.0 | -726.6 | |
| 0.00 | 3.19 | 0.00 | 1.59 | 5.62 | 66.93 | -3.50 | 63.64 | 0.0682 | 1109.0 | 899.6 | |
| 0.00 | 1.30 | 0.00 | 0.64 | 6.48 | 66.26 | -4.17 | 57.96 | 0.0855 | 1049.0 | 810.2 | |
| 0.00 | 6.13 | 0.00 | 3.05 | 6.27 | 65.28 | -5.15 | 65.04 | 0.0989 | 496.0 | 815.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
