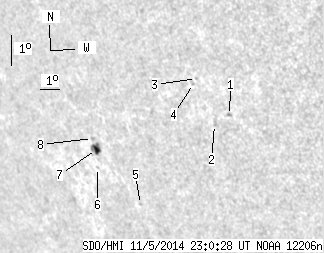

SDO HMI 2014-11-05 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.23 | 15.63 | 3.92 | 13.86 | -15.67 | 17.46 | -52.97 | 111.91 | 0.8295 | -224.9 | -109.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-05 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.90 | 0.00 | 1.49 | -14.59 | 22.79 | -47.64 | 112.46 | 0.7761 | 631.0 | 568.2 | |
| 0.00 | 0.95 | 0.00 | 0.76 | -14.91 | 22.00 | -48.43 | 112.56 | 0.7851 | 583.0 | 505.9 | |
| 0.00 | 0.69 | 0.00 | 0.55 | -13.50 | 21.57 | -48.86 | 110.68 | 0.7850 | 191.0 | 250.4 | |
| 0.00 | 1.04 | 0.00 | 0.83 | -13.67 | 21.39 | -49.04 | 110.82 | 0.7874 | 296.0 | 380.5 | |
| 0.00 | 0.86 | 0.00 | 0.78 | -17.68 | 17.35 | -53.08 | 114.18 | 0.8371 | -374.0 | -334.0 | |
| 0.00 | 0.78 | 0.00 | 0.73 | -16.61 | 15.52 | -54.91 | 112.37 | 0.8500 | -347.0 | -358.3 | |
| 4.23 | 7.86 | 3.92 | 7.28 | -16.04 | 15.71 | -54.72 | 111.77 | 0.8469 | -744.7 | -505.1 | |
| 0.00 | 1.55 | 0.00 | 1.44 | -15.70 | 15.64 | -54.79 | 111.36 | 0.8468 | -517.0 | -377.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
