SDO HMI 2014-11-06 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.63 | 0.00 | 5.29 | -17.72 | 98.53 | 28.65 | 231.18 | 0.5862 | 33.0 | 114.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

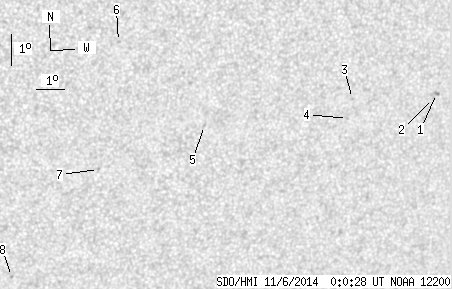

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.07 | 0.00 | 1.34 | -17.03 | 104.17 | 34.29 | 237.30 | 0.6424 | 818.0 | 691.3 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -17.18 | 104.09 | 34.21 | 237.03 | 0.6425 | 613.0 | 631.7 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -17.06 | 101.06 | 31.19 | 234.87 | 0.6075 | 577.0 | 523.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -17.70 | 101.00 | 31.12 | 233.93 | 0.6115 | 742.0 | 664.9 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -17.74 | 95.92 | 26.04 | 229.10 | 0.5553 | -706.0 | -536.1 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -14.99 | 92.62 | 22.75 | 229.55 | 0.4929 | -712.0 | -627.0 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -19.05 | 92.47 | 22.59 | 223.33 | 0.5312 | -618.0 | -427.1 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -22.48 | 90.00 | 20.12 | 215.82 | 0.5453 | -450.0 | -558.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
