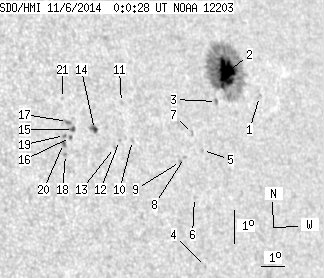

SDO HMI 2014-11-06 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.06 | 189.54 | 25.63 | 138.25 | 13.37 | 116.72 | 46.85 | 284.65 | 0.7355 | -397.8 | -213.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.33 | 0.00 | 1.77 | 12.87 | 118.84 | 48.97 | 283.66 | 0.7591 | -125.0 | -143.4 | |
| 31.00 | 153.81 | 22.95 | 113.86 | 13.66 | 117.53 | 47.66 | 284.91 | 0.7456 | -968.9 | -314.1 | |
| 0.00 | 1.99 | 0.00 | 1.45 | 12.82 | 116.86 | 46.99 | 283.88 | 0.7367 | -530.0 | -462.7 | |
| 0.00 | 0.69 | 0.00 | 0.49 | 7.93 | 115.43 | 45.55 | 277.29 | 0.7152 | -267.0 | -308.5 | |
| 0.00 | 1.38 | 0.00 | 0.99 | 11.38 | 115.91 | 46.04 | 282.06 | 0.7239 | 71.0 | 97.1 | |
| 0.00 | 1.04 | 0.00 | 0.73 | 10.00 | 115.29 | 45.42 | 280.21 | 0.7150 | -297.0 | -429.6 | |
| 0.00 | 1.81 | 0.00 | 1.29 | 11.91 | 115.59 | 45.71 | 282.83 | 0.7207 | -275.0 | -340.5 | |
| 0.00 | 1.21 | 0.00 | 0.85 | 11.21 | 115.10 | 45.22 | 281.93 | 0.7140 | -489.0 | -473.0 | |
| 0.00 | 1.12 | 0.00 | 0.79 | 11.10 | 114.90 | 45.02 | 281.80 | 0.7115 | -496.0 | -419.8 | |
| 0.00 | 1.81 | 0.00 | 1.24 | 11.82 | 113.01 | 43.13 | 283.12 | 0.6894 | 355.0 | 283.1 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 12.98 | 112.79 | 42.91 | 284.83 | 0.6887 | 189.0 | 274.7 | |
| 0.00 | 1.04 | 0.00 | 0.70 | 11.85 | 112.47 | 42.60 | 283.25 | 0.6829 | 286.0 | 363.9 | |
| 0.00 | 1.12 | 0.00 | 0.76 | 11.65 | 112.23 | 42.35 | 283.00 | 0.6795 | 329.0 | 451.8 | |
| 1.99 | 5.44 | 1.32 | 3.62 | 12.22 | 111.52 | 41.64 | 283.98 | 0.6716 | 743.8 | 600.6 | |
| 0.95 | 2.76 | 0.63 | 1.82 | 12.26 | 110.67 | 40.80 | 284.21 | 0.6610 | 770.7 | 573.1 | |
| 0.43 | 1.38 | 0.28 | 0.91 | 12.03 | 110.51 | 40.63 | 283.89 | 0.6584 | 589.2 | 524.6 | |
| 0.00 | 3.02 | 0.00 | 1.98 | 12.51 | 110.48 | 40.60 | 284.63 | 0.6590 | 633.0 | 549.0 | |
| 0.00 | 1.12 | 0.00 | 0.73 | 11.53 | 110.22 | 40.34 | 283.19 | 0.6538 | 705.0 | 535.0 | |
| 0.00 | 1.55 | 0.00 | 1.02 | 12.10 | 110.28 | 40.40 | 284.04 | 0.6556 | 844.0 | 738.7 | |
| 0.69 | 2.68 | 0.45 | 1.75 | 11.86 | 110.20 | 40.32 | 283.70 | 0.6541 | 826.9 | 699.8 | |
| 0.00 | 1.12 | 0.00 | 0.74 | 13.21 | 110.42 | 40.54 | 285.69 | 0.6596 | 528.0 | 425.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
