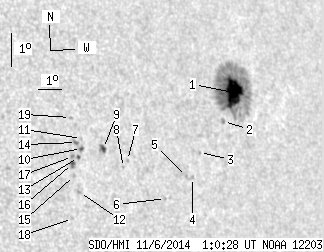

SDO HMI 2014-11-06 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.63 | 178.09 | 25.58 | 131.15 | 13.40 | 116.67 | 47.34 | 284.61 | 0.7411 | -415.2 | -212.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30.49 | 148.64 | 22.81 | 111.25 | 13.66 | 117.54 | 48.21 | 284.82 | 0.7518 | -985.6 | -311.8 | |
| 0.00 | 1.81 | 0.00 | 1.34 | 12.81 | 116.86 | 47.53 | 283.80 | 0.7430 | -626.0 | -513.4 | |
| 0.00 | 1.30 | 0.00 | 0.93 | 11.94 | 115.57 | 46.25 | 282.80 | 0.7271 | -342.0 | -378.5 | |
| 0.00 | 1.55 | 0.00 | 1.11 | 11.21 | 115.11 | 45.78 | 281.86 | 0.7207 | -655.0 | -553.9 | |
| 0.00 | 0.52 | 0.00 | 0.37 | 11.25 | 114.86 | 45.53 | 281.95 | 0.7178 | -392.0 | -440.7 | |
| 0.00 | 0.69 | 0.00 | 0.48 | 10.64 | 113.83 | 44.51 | 281.22 | 0.7047 | 209.0 | 246.8 | |
| 0.00 | 1.21 | 0.00 | 0.82 | 11.85 | 112.47 | 43.14 | 283.16 | 0.6896 | 192.0 | 314.3 | |
| 0.00 | 0.95 | 0.00 | 0.65 | 11.65 | 112.26 | 42.93 | 282.90 | 0.6867 | 410.0 | 480.4 | |
| 1.90 | 4.92 | 1.28 | 3.31 | 12.25 | 111.55 | 42.22 | 283.91 | 0.6789 | 729.5 | 537.3 | |
| 0.78 | 1.64 | 0.52 | 1.09 | 12.29 | 110.66 | 41.33 | 284.15 | 0.6678 | 738.8 | 634.5 | |
| 0.00 | 0.95 | 0.00 | 0.63 | 12.59 | 110.72 | 41.39 | 284.58 | 0.6691 | 523.0 | 439.5 | |
| 0.00 | 1.21 | 0.00 | 0.80 | 10.98 | 110.34 | 41.01 | 282.25 | 0.6615 | 673.0 | 504.7 | |
| 0.60 | 1.73 | 0.40 | 1.14 | 12.03 | 110.49 | 41.16 | 283.79 | 0.6651 | 573.4 | 542.2 | |
| 0.00 | 2.07 | 0.00 | 1.37 | 12.48 | 110.49 | 41.16 | 284.47 | 0.6660 | 735.0 | 571.5 | |
| 0.00 | 1.38 | 0.00 | 0.91 | 11.50 | 110.23 | 40.90 | 283.05 | 0.6609 | 714.0 | 595.1 | |
| 0.86 | 3.80 | 0.57 | 2.50 | 11.86 | 110.21 | 40.88 | 283.59 | 0.6614 | 805.8 | 588.4 | |
| 0.00 | 1.38 | 0.00 | 0.91 | 12.07 | 110.25 | 40.92 | 283.90 | 0.6622 | 803.0 | 690.6 | |
| 0.00 | 1.30 | 0.00 | 0.85 | 10.22 | 109.93 | 40.60 | 281.16 | 0.6552 | 282.0 | 315.7 | |
| 0.00 | 1.04 | 0.00 | 0.69 | 13.24 | 110.40 | 41.07 | 285.62 | 0.6664 | 527.0 | 522.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
