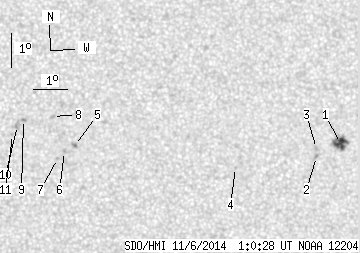

SDO HMI 2014-11-06 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.98 | 30.07 | 4.47 | 14.94 | 5.77 | 70.81 | 1.49 | 186.84 | 0.0854 | -67.9 | 190.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.98 | 12.18 | 4.47 | 6.06 | 5.67 | 74.91 | 5.59 | 288.00 | 0.1023 | -1105.8 | -818.1 | |
| 0.00 | 1.99 | 0.00 | 0.99 | 5.29 | 74.19 | 4.86 | 286.34 | 0.0884 | -904.0 | -737.7 | |
| 0.00 | 2.16 | 0.00 | 1.07 | 5.53 | 74.19 | 4.86 | 288.89 | 0.0896 | -1026.0 | -825.0 | |
| 0.00 | 0.52 | 0.00 | 0.26 | 4.98 | 71.77 | 2.44 | 294.24 | 0.0467 | -825.0 | -709.3 | |
| 0.00 | 2.16 | 0.00 | 1.07 | 5.64 | 66.96 | -2.36 | 53.31 | 0.0514 | 1106.0 | 913.8 | |
| 0.00 | 1.21 | 0.00 | 0.60 | 5.46 | 66.66 | -2.66 | 59.27 | 0.0541 | 962.0 | 743.1 | |
| 0.00 | 1.21 | 0.00 | 0.60 | 5.25 | 66.46 | -2.87 | 64.43 | 0.0556 | 1003.0 | 814.4 | |
| 0.00 | 1.90 | 0.00 | 0.94 | 6.50 | 66.30 | -3.03 | 48.97 | 0.0699 | 890.0 | 702.8 | |
| 0.00 | 1.73 | 0.00 | 0.86 | 6.41 | 65.43 | -3.89 | 56.83 | 0.0810 | 965.0 | 798.0 | |
| 0.00 | 4.06 | 0.00 | 2.02 | 6.23 | 65.25 | -4.07 | 59.85 | 0.0820 | 893.0 | 735.9 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 5.96 | 65.11 | -4.22 | 63.60 | 0.0821 | 896.0 | 726.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
