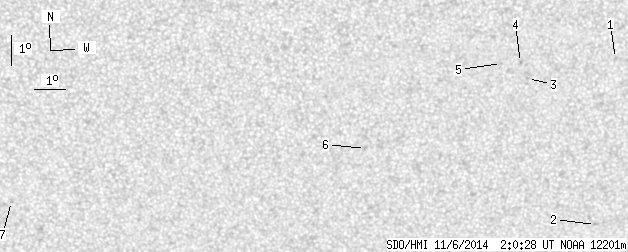

SDO HMI 2014-11-06 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.86 | 0.00 | 5.60 | -23.03 | 79.17 | 10.39 | 200.01 | 0.4932 | 323.0 | 196.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-06 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.98 | -20.71 | 84.47 | 15.69 | 211.45 | 0.4870 | 575.0 | 334.6 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -26.27 | 84.47 | 15.70 | 205.88 | 0.5579 | -852.0 | -606.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -21.31 | 81.64 | 12.86 | 206.06 | 0.4740 | 796.0 | 613.2 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -20.78 | 81.36 | 12.59 | 206.11 | 0.4649 | 796.0 | 674.3 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -20.81 | 80.75 | 11.97 | 204.97 | 0.4611 | 799.0 | 690.7 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -23.56 | 76.51 | 7.73 | 194.99 | 0.4785 | 840.0 | 637.9 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -25.31 | 64.95 | -3.83 | 172.94 | 0.4933 | -693.0 | -550.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
